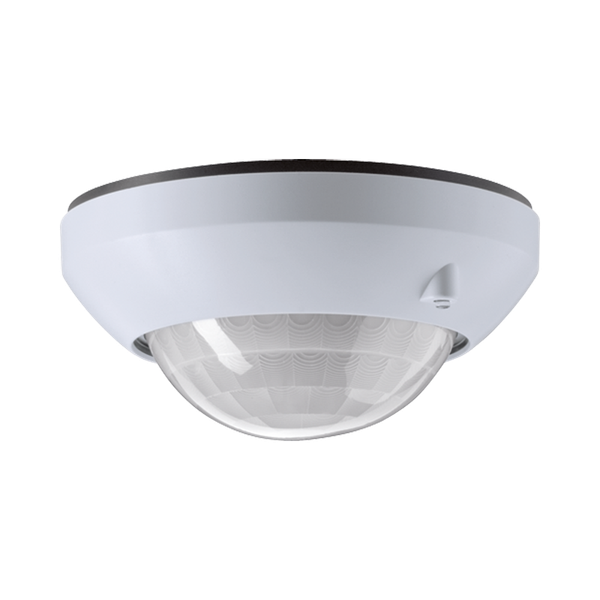

Presence indicator KNX Presence det. universal, white

Name: Presence indicator KNX Presence det. universal, white
Brand: Jung
Price: 218.190 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

218,19 €

This price is valid until 31.12.25

EAN: 4011377095489

MPN: 3361-1WW

Box: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Presence indicator KNX Presence det. universal, white
Brand	Jung
Categories	Bus System Devices (KNX/Modbus)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9031 8080 00
Model	Presence detector
Bus system KNX	Yes
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	Yes
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Packing details

Packing level 1

4011377095489

Other Technical data

Mounting method	Surface mounted (plaster)
Colour	White
Surface protection	Other
Creep-under protection	No
Number of channels	0
Staircase monitoring	No
Material quality	Thermoplastic
Switching power	0 W
Max. transmission range frontally	0 m
Max. transmission range sideways	10 m
Material	Plastic
Diameter detection range on floor	20 m
Substation input	No
RAL-number (similar)	9016
Teach-function for response value luminosity	No
Operation mode switch	No
Transparent	No
Animal zone	No
Surface finishing	Glossy
Detection angle vertical	0-80 °
Detection angle horizontal	0-360 °
Min. switch-on time	0 s
Max. duty cycle	0 min
Response value luminosity adjustable	Yes
Switch-off delay self-learning	No
Optimum mounting height	3 m
Min. depth of built-in installation box	0 mm

Downloads

Product data sheet Deep link REACH

Description

Used in KNX-controlled systems.Detects presence to manage lighting or other automated functions.Designed for ceiling-mounted installation. Surface mounted (plaster).White thermoplastic, glossy finish.RAL similar to 9016.Horizontal detection angle 0°–360°, vertical detection angle 0°–80°.Optimum mounting height:3 m.Diameter detection range on floor:20 m.Max transmission range sideways:10 m, frontally:null.Luminosity response adjustable.Min switch-on time:0 s, max duty cycle:null min. KNX bus system compatible;rejects KNX radio, radio frequent, Powernet and LON connections;supports direct bus connection integration.Number of channels:null;Switching power output documented as nil W
