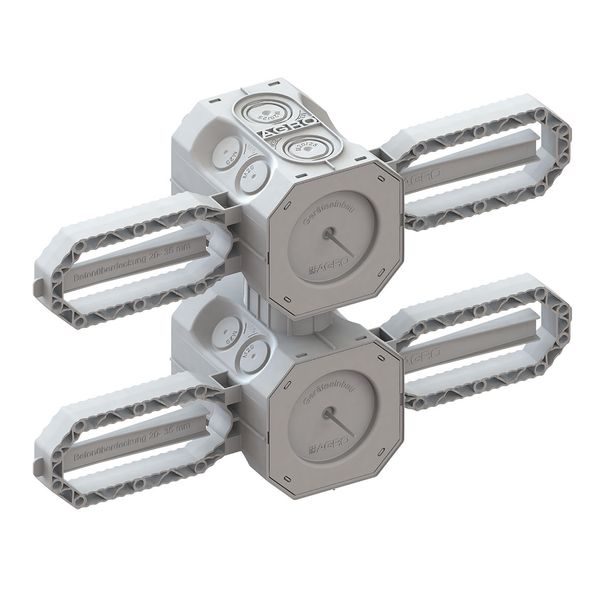

Prefix® 2.0 concr. building box 2x1 NUP to be fixed to the reinforcement
Order only
Minimal order quantity: 5
Price (excl. VAT):
22,03 €
Subtotal: 110,15 €
MOQ: 5
EAN: 7611614334592
MPN: 9941.25
Box: 5
Pallet: 240
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Prefix® 2.0 concr. building box 2x1 NUP to be fixed to the reinforcement |
| Brand | KAISER |
| Categories |
Flush Mounted Junction Boxes
|
| Country of origin | CH |
| Harmonized System Code | 3926 9097 00 |
| Mounting method | Concrete building |
| Model | Double |
| Shape | Rectangular |
| Equipped with | None |
| Connectable | No |
Packing details
| Packing level 1 | 7611614334592 |
| Packing level 2 | 7611614334592 |
Other Technical data
| Colour | Grey |
| Width | 77 mm |
| Halogen free | Yes |
| Surface protection | Untreated |
| Construction type | Built-in installation box (device box) |
| Inner depth | 90 mm |
| Length | 177 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 20 |
| Mounting switching equipment | Screwing |
| Cover attachment | Snapped on |
| For number of electric fittings | 2 |
| With screening | No |
| With nail lugs | No |
| With screws | No |
| Air tight | No |
| Depth | 92 mm |
| For tube diameter | 32 mm |
| Inlet from the rear | No |
| Pipe locking | Yes |
| Special application | None |
| Nozzle | None |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Cover model | Construction protective cover |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Description
Prefix® 2.0 concr. building box 2x1 NUP to be fixed to the reinforcement
