pre-assembled connecting cable
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | pre-assembled connecting cable |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC002587 |
| Nominal cross section conductor | 2.5 mm² |
| Rated current | 20 A |
| Rated voltage | 400 V |
| Number of poles | 5 |
| Degree of protection (IP) | IP20 |
| Type of finished cable | Other |
| Type side 1 | Plug |
| Type side 2 | Free conductor end |
Packing details
| Packing level 1 | 4055143246606 |
Other Technical data
| Halogen free | No |
| Cable type | H05VV-F |
| Colour housing | Black |
| Locking mechanism | Separate |
| Total length | 13000 mm |
| Colour outer sheath | Black |
| Cable diameter | 11.2-13.9 mm |
| Surface treatment contacts | Other |
| Pollution degree | 3 |
| Mechanical coding | Yes |
| Rated surge voltage | 6 kV |
| Continuity resistor | 3 mOhm |
| Colour coding/contact insert | Grey |
| Strip length | 9 mm |
| Dismantle length | 55 mm |
| Insulating piece permanent temperature-resistant | 105 °C |
| Conductor end treatment | Ultrasonic compressed wire ends |
| Cable permanent temperature-resistant to | 70 °C |
| Max. operating temperature at conductor | 75 °C |
Description

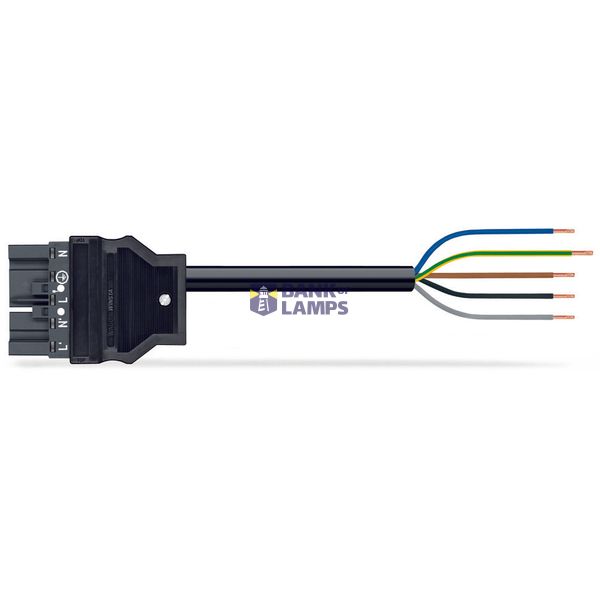

pre-assembled connecting cable | Eca | Plug/open-ended | 5-pole | Cod. L | H05VV-F 5G 2.5 mm² | 13 m | 2,50 mm² | dark gray
