PRCD-S+ PCE 30mA1.5/1.5m 3G2.5H07 K68

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	PRCD-S+ PCE 30mA1.5/1.5m 3G2.5H07 K68
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000003
Rated current	16 A
Rated voltage	230 V
Number of poles	3
Rated fault current	0.03 A
Leakage current type	Other
Frequency	50 Hz

Packing details

Packing level 1

9003399442759

Other Technical data

Mounting method	Adapter plug
Degree of protection (IP)	IP68

Downloads

Others Product data sheet

Description

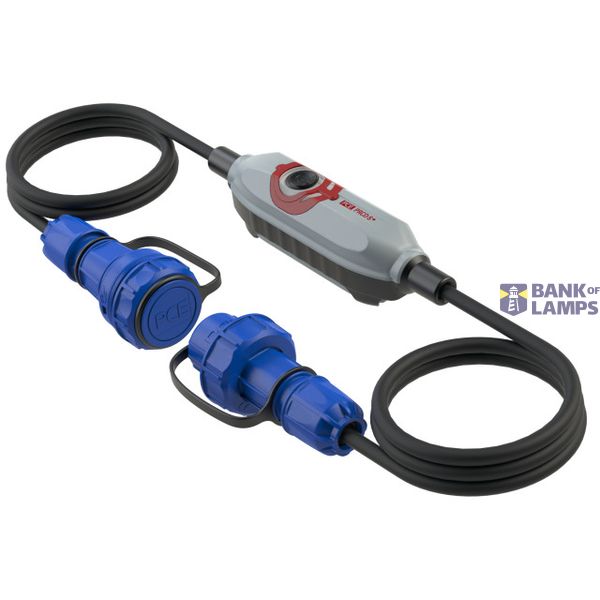

Safety extension cord with PRCD-S+
16A 250V~; I∆N = 30mA
Housing grey /black /red
3m cable H07RN-F 3G2,5mm²
Entry: 1,5m cable with safety plug IP68 (20051-b)
Outlet: 1,5m cable with safety connector IP68 (20251-b)
Protection degree: IP55
PRCD-S+ according DIN VDE 0661
DGUV Information 203-006 (former BGI/GUV-I 608)
Ready wired, mounted and tested
