PRCD-K+ PCE 30mA1.5/1.5m 3G1.5H07 St/Ku

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	PRCD-K+ PCE 30mA1.5/1.5m 3G1.5H07 St/Ku
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000003
Rated current	16 A
Rated voltage	230 V
Number of poles	3
Rated fault current	0.03 A
Leakage current type	Other
Frequency	50 Hz

Packing details

Packing level 1

9003399502989

Other Technical data

Mounting method	Other
Degree of protection (IP)	IP54

Downloads

Others Product data sheet

Description

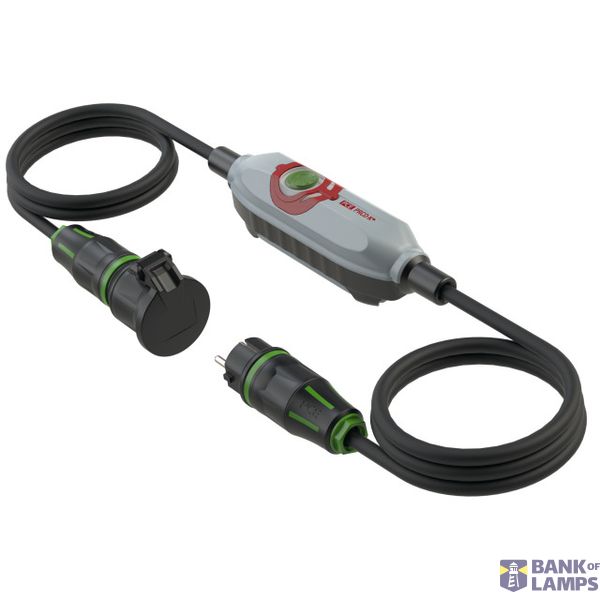

Safety extension cord with PRCD-K+
16A 250V~; I∆N = 30mA
Housing grey /black /red
3m cable H07RN-F 3G1,5mm²
Entry: 1,5m cable with TopTaurus2 safety plug black-green (05721-shu)
Outlet: 1,5m cable with TopTaurus2 safety connector black-green with hinged lid (25712-shu)
Protection degree: IP54
PRCD-K+ according DIN VDE 0661
DGUV Information 203-006 (former BGI/GUV-I 608)
Ready wired, mounted and tested
