POWERSTAR HQI®-TS 2000 W/N/L

Name: POWERSTAR HQI®-TS 2000 W/N/L
Brand: OSRAM
Price: 145.640 EUR
Availability: Discontinued

In stock: Yes Vendor stock: No Minimal order quantity: 1 Discontinued

Price (excl. VAT):

145,64 €

This price is valid until 31.08.25 or while stock lasts

Split box: 10,00 €

EAN: 4008321530660

MPN: 4008321530660

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	POWERSTAR HQI®-TS 2000 W/N/L
Brand	OSRAM
Categories	Metal halide lamps without reflector K12s-36 Light Bulbs
Country of origin	DE
Harmonized System Code	8539 3290 00
Model	Clear
Socket	K12s-36
Luminous flux	230000 lm

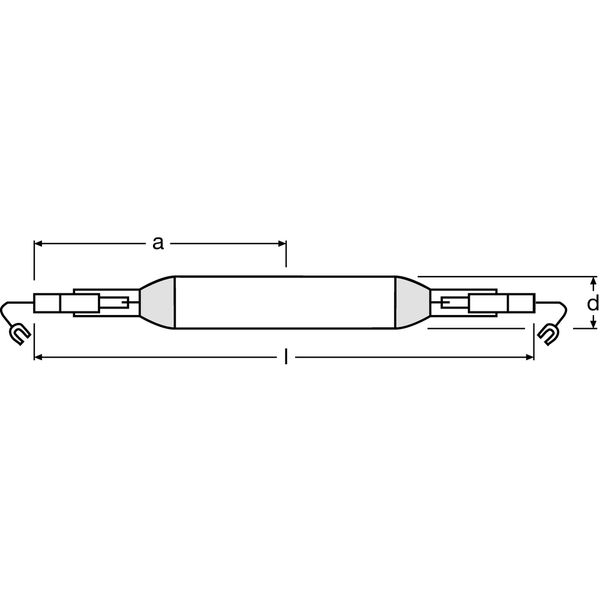

Total length	274 mm
Colour rendering index CRI	60-69
Diameter	40 mm
Lamp efficacy	115 lm/W
Lamp shape	Other
External ballast required	Yes
Lamp voltage	200 V
Colour temperature	4100 K
Lamp power	2000 W
Lamp designation	T10

Packing details

Packing level 1	4008321530660
Packing level 2	4008321530677
Packing level 3	4008321530660

Other Technical data

Colour	Colourless
Energy efficiency class	A+
UV-protection	No
Burning position	P15
External ignitor required	Yes
Sun tanning lamp	No
Material discharge tube	Quartz
Closed luminaire required	Yes
Colour of light	642
Colour of light according to EN 12464-1	Neutral white 3300-5300 K
Average nominal lifespan	0 h
Weighted energy consumption in 1000 hours	2365 kWh

Downloads

Others Product data sheet Declaration DOC CE (Declaration of conformity CE)

Description

This component is an electronic ballast designed to regulate and control the operation of fluorescent lamps. It stabilizes electrical input, initiates lamp ignition, and maintains optimal power delivery for efficient lighting performance in commercial or industrial applications. **Electrical Characteristics** Input voltage range: Accepts 220–240V AC for standard European mains power systems. Operating frequency: Supports 50–60 Hz input frequencies without additional adaptation requirements. Power factor correction included — enhances efficiency in connected lighting units. **Physical Design and Integration** Compact housing accommodates mounting within fixtures with limited internal space—optimized for installation in linear fluorescent luminaires (T5/T8). Wiring connections support both single- and dual-lamp configurations via screw terminals; installation orientation flexibility may vary depending on application. ### Technical Notes / Limitations: - Maximum ambient temperature during operation: 50°C. - Not approved for outdoor use unless housed within a weather-protected fixture. - Designed strictly for T5/T8 fluorescent lamps — incompatible with legacy incandescent bulbs or LED retrofits. - Ballast lifespan subject to reduced cycle count under frequent switching conditions.
