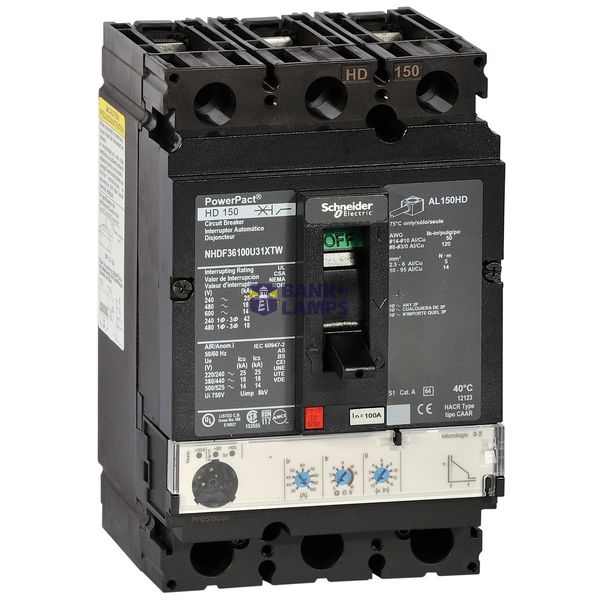

POWERPACT HD 3P MICROLOGIC 3.2 100A

Name: POWERPACT HD 3P MICROLOGIC 3.2 100A
Brand: Schneider Electric
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	POWERPACT HD 3P MICROLOGIC 3.2 100A
Brand	Schneider Electric
Country of origin*	US
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 2090 00
ETIM	EC000074
Rated permanent current Iu	100 A
Number of poles	3
Rated operating voltage	525 V
Overload release current setting	100 A
Degree of protection (IP)	IP40
Rated short-circuit breaking capacity lcu at 400 V, AC	18 kA
Adjustment range undelayed short-circuit release	150-1500 A

Packing level 1

0785901612452

Width	104 mm
Height	163 mm
Depth	86 mm
Rated operation power at AC-3, 400 V	0 kW
With integrated auxiliary switch	Yes
With integrated under voltage release	Yes
Type of electrical connection of main circuit	Screw connection
Type of control element	Other
Switch off technique	Electronic
Rated operation power at AC-3, 230 V	0 kW
Phase failure sensitive	No
Device construction	Built-in device fixed built-in technique
