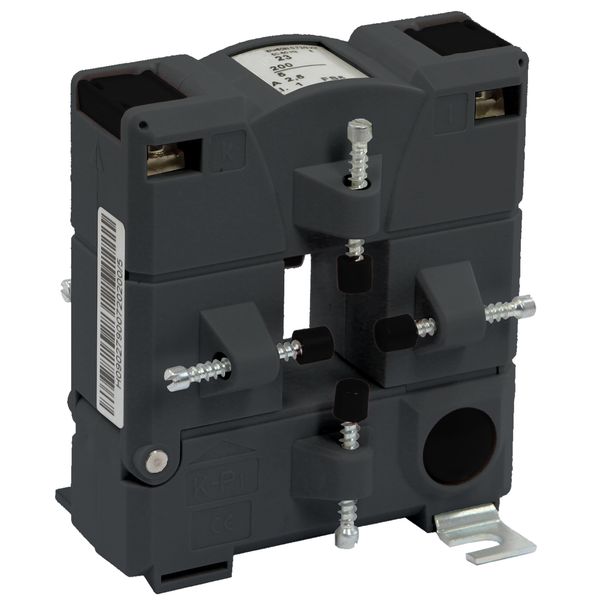

PowerLogic Split Core Current Transformer - Type GD, for bar - 0250A / 5A

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

155,67 €

This price is valid until 31.12.25

EAN: 3606489607852

MPN: METSECT5GD025

Package: 1

Box: 15

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	PowerLogic Split Core Current Transformer - Type GD, for bar - 0250A / 5A
Brand	Schneider Electric
Categories	Measurement Transformers
Model	Through-feed current converter
Primary rated current	250 A
Secondary rated apparent power	1.5 VA
Secondary rated current	5 A
Overcurrent limiting factor	FS 5
Accuracy class	1

Packing details

Packing level 1	3606489607852
Packing level 2	3606489607850

Other Technical data

Opening diameter	0 mm
Number of primary inputs	1
With copper rail	No
Snap mounting	No
With shock protection	No
Calibrated	No
Height opening	85 mm
Width opening	55 mm
Secondary connection	Screw connection

Downloads

Technical manual Declaration DOC CE (Declaration of conformity CE) Mounting instruction

Description

This current transformer, standard for busbar, has a line rated current of 250 A and a secondary current rating of 5 A. This current transformer do have a 55 mm x 85 mm opening. Compatible with a single output for bar: 50 mm x 80 mm. Burden and accuracy class as follows: class 1 maximum power: 1.5 VA.
