Phoenix Contact

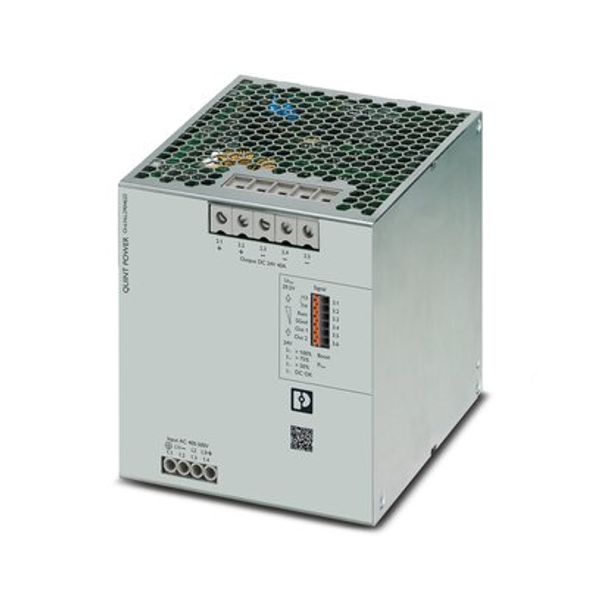

QUINT4-PS/3AC/24DC/40 - Power supply unit

In stock
Price (excl. VAT):
333,81 € per pcs
This price is valid until 24.12.25 or while stock lasts
EAN: 4055626356105
MPN: 2904623
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name QUINT4-PS/3AC/24DC/40 - Power supply unit
Brand Phoenix Contact
Categories AC/DC Power Supply Units
Country of origin TH
Width 120 mm
Height 130 mm
Depth 125 mm
Voltage type of supply voltage AC/DC
Power output 960 W
Rail mounting possible Yes
Wall mounting possible No
1st secondary output voltage 24-29.5 V
Rated supply voltage at AC 50 Hz 400-500 V
Max. output current 1 60 A
Nominal value output current 1 40 A

Packing details

Packing level 1 4055626356105, 4055626356105

Other Technical data

Built-in height 130 mm
Power consumption 1217 VA
Built-in width 0 mm
Modular version No
Suitable for safety functions Yes
Width in number of modular spacings 0
Output voltage stabilized Yes
Type of electric connection Screw connection
Stabilized Yes
Degree of protection (IP) IP20
Direct mounting possible No
Secondary voltage adjustable Yes
Rated supply voltage at AC 60 Hz 400-500 V
Rated supply voltage at DC 260-300 V
Short-circuit-proof Yes
Max. output current 2 0 A
Max. output current 3 0 A
Nominal value output voltage 1 24 V
Nominal value output voltage 2 0 V
Nominal value output voltage 3 0 V
Nominal value output current 2 0 A
Nominal value output current 3 0 A
SIL according to IEC 61508 None

Description

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 3-phase, output: 24 V DC / 40 A
