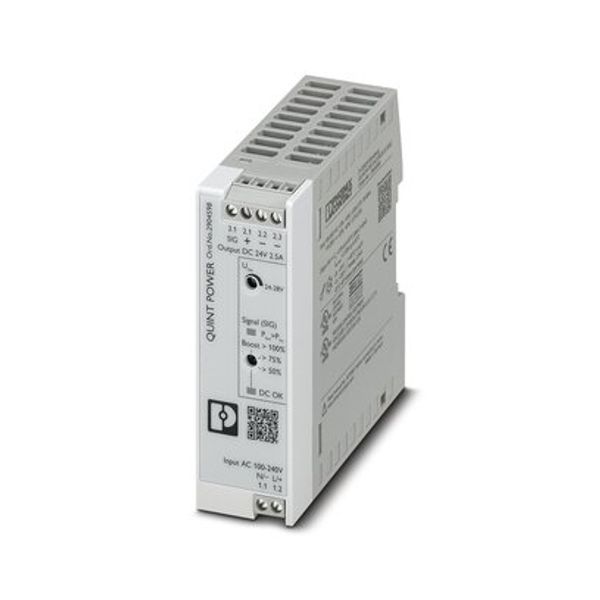

QUINT4-PS/1AC/24DC/2.5/SC - Power supply unit

Name: QUINT4-PS/1AC/24DC/2.5/SC - Power supply unit
Brand: Phoenix Contact
Price: 69.020 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

69,02 € per pcs

This price is valid until 24.12.26

EAN: 4055626156040

MPN: 2904598

Box: 1

Estimate delivery time to our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	QUINT4-PS/1AC/24DC/2.5/SC - Power supply unit
Brand	Phoenix Contact
Categories	AC/DC Power Supply Units
Country of origin*	VN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Width	32 mm
Height	99 mm
Depth	90 mm
Voltage type of supply voltage	AC/DC
Power output	60 W
Rail mounting possible	Yes
Wall mounting possible	No
1st secondary output voltage	24-28 V
Rated supply voltage at AC 50 Hz	100-240 V
Max. output current 1	5 A
Nominal value output current 1	2.5 A

Packing level 1

4055626156040, 4055626156040

Built-in height	99 mm
Power consumption	71 VA
Built-in width	0 mm
Modular version	No
Suitable for safety functions	Yes
Width in number of modular spacings	0
Output voltage stabilized	Yes
Type of electric connection	Screw connection
Stabilized	Yes
Degree of protection (IP)	IP20
Direct mounting possible	No
Secondary voltage adjustable	Yes
Rated supply voltage at AC 60 Hz	100-240 V
Rated supply voltage at DC	110-250 V
Short-circuit-proof	Yes
Max. output current 2	0 A
Max. output current 3	0 A
Nominal value output voltage 1	24 V
Nominal value output voltage 2	0 V
Nominal value output voltage 3	0 V
Nominal value output current 2	0 A
Nominal value output current 3	0 A
SIL according to IEC 61508	None
