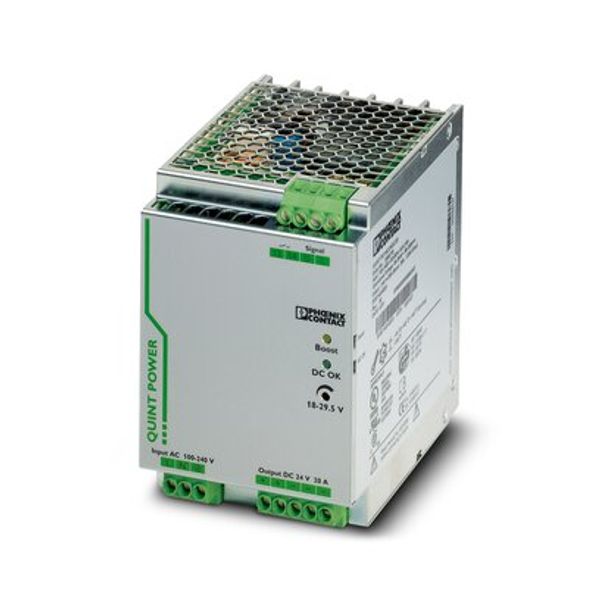

QUINT-PS/1AC/24DC/20 - Power supply unit
Order only
Price (excl. VAT):
249,66 €
per pcs
EAN: 4046356113557
MPN: 2866776
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | QUINT-PS/1AC/24DC/20 - Power supply unit |
| Brand | Phoenix Contact |
| Categories |
AC/DC Power Supply Units
|
| Country of origin* | TH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Width | 90 mm |
| Height | 130 mm |
| Depth | 125 mm |
| Voltage type of supply voltage | AC/DC |
| Power output | 480 W |
| Rail mounting possible | Yes |
| Wall mounting possible | No |
| 1st secondary output voltage | 24-29.5 V |
| Rated supply voltage at AC 50 Hz | 85-240 V |
| Max. output current 1 | 26 A |
| Nominal value output current 1 | 20 A |
Packing details
| Packing level 1 | 4046356113557, 4046356113557 |
Other Technical data
| Built-in height | 130 mm |
| Power consumption | 569 VA |
| Built-in width | 0 mm |
| Modular version | No |
| Suitable for safety functions | Yes |
| Width in number of modular spacings | 0 |
| Output voltage stabilized | Yes |
| Type of electric connection | Screw connection |
| Stabilized | Yes |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | No |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 60 Hz | 100-264 V |
| Rated supply voltage at DC | 90-350 V |
| Short-circuit-proof | Yes |
| Max. output current 2 | 0 A |
| Max. output current 3 | 0 A |
| Nominal value output voltage 1 | 24 V |
| Nominal value output voltage 2 | 0 V |
| Nominal value output voltage 3 | 0 V |
| Nominal value output current 2 | 0 A |
| Nominal value output current 3 | 0 A |
| SIL according to IEC 61508 | None |
Description
Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 20 A
