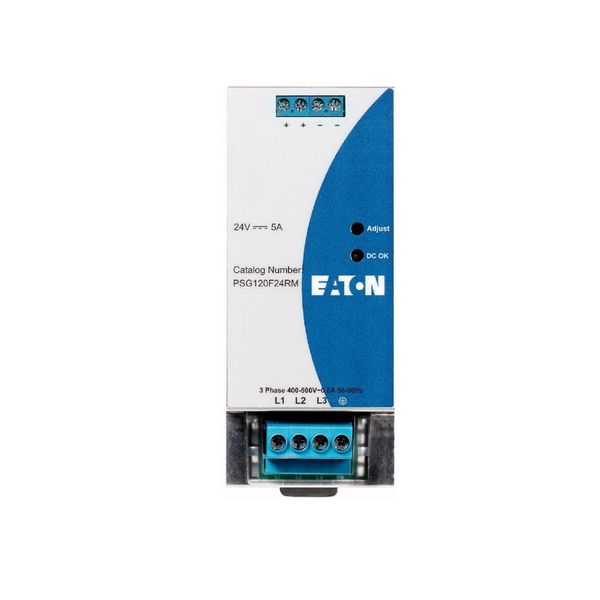

Power supply unit, 3-phase, 400-500VAC/24VDC, 5A
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
146,79 €
EAN: 4015081694716
MPN: 172883
Package: 1
Box: 24
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Power supply unit, 3-phase, 400-500VAC/24VDC, 5A |
| Brand | EATON |
| Categories |
AC/DC Power Supply Units
|
| Country of origin | TH |
| Width | 50 mm |
| Height | 121 mm |
| Depth | 117 mm |
| Voltage type of supply voltage | AC |
| Power output | 120 W |
| Rail mounting possible | Yes |
| Wall mounting possible | No |
| 1st secondary output voltage | 24 V |
| Rated supply voltage at AC 50 Hz | 320-600 V |
| Max. output current 1 | 5 A |
| Nominal value output current 1 | 5 A |
Packing details
| Packing level 1 | 4015081694716 |
| Packing level 2 | 4015081853458 |
Other Technical data
| Built-in height | 121 mm |
| Power consumption | 200 VA |
| Built-in width | 50 mm |
| Modular version | Yes |
| Suitable for safety functions | No |
| Width in number of modular spacings | 0 |
| Output voltage stabilized | Yes |
| Type of electric connection | Screw connection |
| Stabilized | Yes |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | No |
| 2nd secondary output voltage | 0 V |
| 3rd secondary output voltage | 0 V |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 60 Hz | 320-600 V |
| Rated supply voltage at DC | 0 V |
| Short-circuit-proof | Yes |
| Performance level according to EN ISO 13849-1 | None |
| Max. output current 2 | 0 A |
| Max. output current 3 | 0 A |
| Nominal value output voltage 1 | 24 V |
| Nominal value output voltage 2 | 0 V |
| Nominal value output voltage 3 | 0 V |
| Nominal value output current 2 | 0 A |
| Nominal value output current 3 | 0 A |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | 1 |
Description
Power supply unit, Product range: Power supplies PSG, Subrange: power supply unit, Description: Power Boost via 1.5-fold rated operational current for 5 s, PELV (EN 60204), SELV (EN 60950), Width: 50 mm, Height: 121 mm, Depth: 117.3 mm, Three-phase, Input voltage range: 320 - 600 V AC, (450 - 800 V DC), Nominal input voltage: 3 x 400 - 500 V AC, Rated output voltage: 24 V DC (± 2%), Rated output current: 5 A, Setting range for the output voltage: 24 - 28 V DC, Rated output power: 120 W, Degree of Protection: IP20, Heat dissipation: 16.5 W
