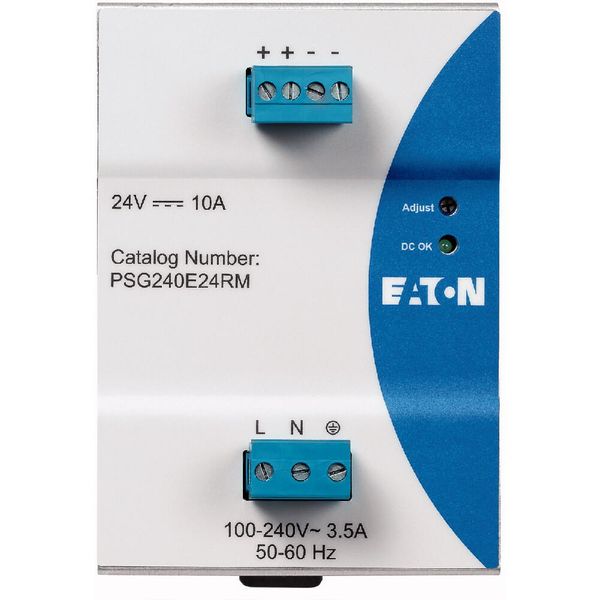

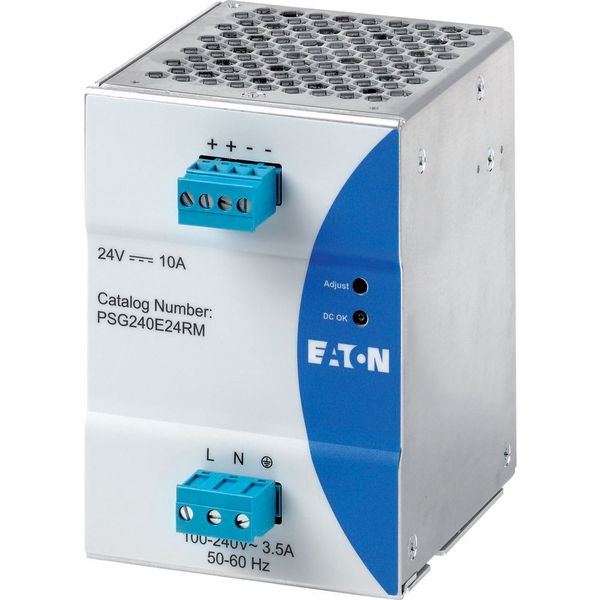

Power supply unit, 1-phase, 100-240VAC/24VDC, 10A
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
208,23 €
EAN: 4015081694815
MPN: 172893
Package: 1
Box: 24
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Power supply unit, 1-phase, 100-240VAC/24VDC, 10A |
| Brand | EATON |
| Categories |
AC/DC Power Supply Units
|
| Country of origin | TH |
| Width | 135 mm |
| Height | 145 mm |
| Depth | 160 mm |
| Voltage type of supply voltage | AC |
| Power output | 240 W |
| Rail mounting possible | Yes |
| Wall mounting possible | No |
| 1st secondary output voltage | 24 V |
| Rated supply voltage at AC 50 Hz | 85-264 V |
| Max. output current 1 | 10 A |
| Nominal value output current 1 | 10 A |
Packing details
| Packing level 1 | 4015081694815 |
| Packing level 2 | 4015081847822 |
Other Technical data
| Built-in height | 121 mm |
| Power consumption | 299 VA |
| Built-in width | 85 mm |
| Modular version | Yes |
| Suitable for safety functions | No |
| Width in number of modular spacings | 0 |
| Output voltage stabilized | Yes |
| Type of electric connection | Screw connection |
| Stabilized | Yes |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | No |
| 2nd secondary output voltage | 0 V |
| 3rd secondary output voltage | 0 V |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 60 Hz | 85-264 V |
| Rated supply voltage at DC | 0 V |
| Short-circuit-proof | Yes |
| Performance level according to EN ISO 13849-1 | None |
| Max. output current 2 | 0 A |
| Max. output current 3 | 0 A |
| Nominal value output voltage 1 | 24 V |
| Nominal value output voltage 2 | 0 V |
| Nominal value output voltage 3 | 0 V |
| Nominal value output current 2 | 0 A |
| Nominal value output current 3 | 0 A |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | 1 |
Description
Power supply unit, Product range: Power supplies PSG, Subrange: power supply unit, Description: Power Boost via 1.5-fold rated operational current for 5 s, PELV (EN 60204), SELV (EN 60950), Width: 85 mm, Height: 121 mm, Depth: 124.1 mm, Single-phase, Input voltage range: 85 - 264 V AC, (120 - 375 V DC), Nominal input voltage: 100 - 240 V AC, 125 - 250 V DC, Rated output voltage: 24 V DC (± 2%), Rated output current: 10 A, Setting range for the output voltage: 24 - 28 V DC, Rated output power: 240 W, Degree of Protection: IP20, Heat dissipation: 30 W
