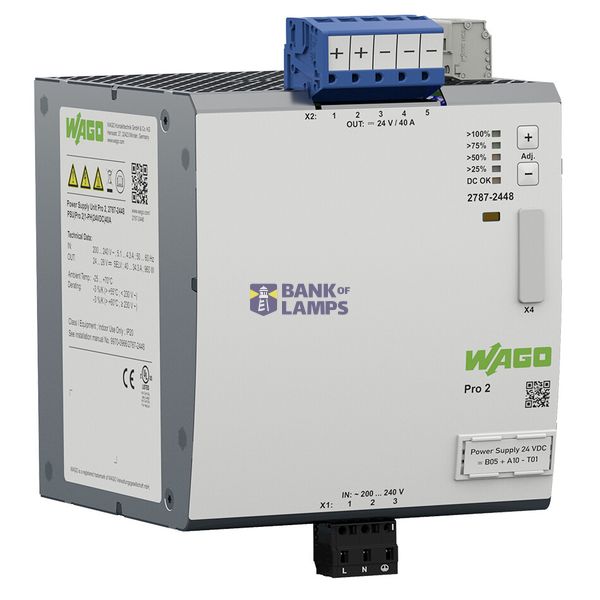

Power supply Pro 2 1-phase

Name: 2787-2448/000-030 Power supply; Pro 2; 1-phase
Brand: WAGO
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	2787-2448/000-030 Power supply; Pro 2; 1-phase
Brand	WAGO
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8504 4082 00
ETIM	EC002540
Width	120 mm
Height	169 mm
Depth	130 mm
Voltage type of supply voltage	DC
Power output	0 W
Rail mounting possible	Yes
Wall mounting possible	No
1st secondary output voltage	24-28 V
Rated supply voltage at AC 50 Hz	180-264 V
Max. output current 1	40 A
Nominal value output current 1	40 A

Packing level 1

4055144138078

Built-in height	0 mm
Power consumption	0 VA
Built-in width	0 mm
Modular version	Yes
Suitable for safety functions	No
Width in number of modular spacings	7
Output voltage stabilized	Yes
Type of electric connection	Spring clamp connection
Stabilized	Yes
Degree of protection (IP)	IP20
Direct mounting possible	No
Secondary voltage adjustable	Yes
Rated supply voltage at AC 60 Hz	180-264 V
Rated supply voltage at DC	255-373 V
Short-circuit-proof	Yes
Max. output current 2	0 A
Max. output current 3	0 A
Nominal value output voltage 1	24 V
Nominal value output voltage 2	0 V
Nominal value output voltage 3	0 V
Nominal value output current 2	0 A
Nominal value output current 3	0 A

Power supply Pro 2 1-phase 24 VDC output voltage 40 A output current TopBoost + PowerBoost communication capability Input voltage range: 200 …
