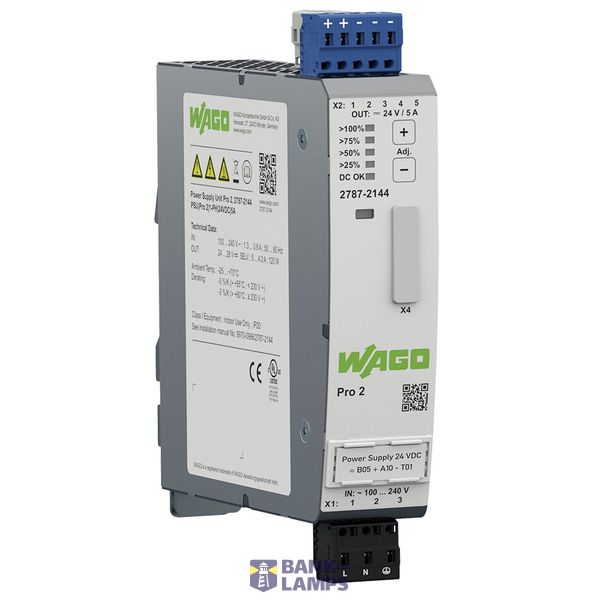

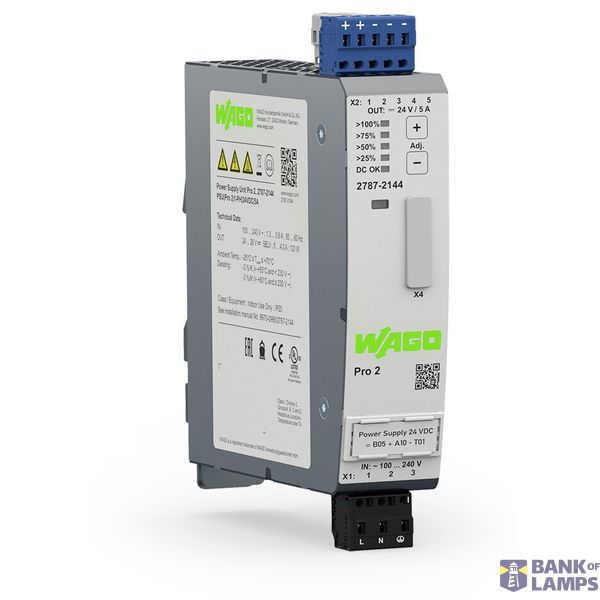

Power supply Pro 2 1-phase
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Power supply Pro 2 1-phase |
| Brand | WAGO |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8504 4082 00 |
| ETIM | EC002540 |
| Width | 35 mm |
| Height | 130 mm |
| Depth | 130 mm |
| Voltage type of supply voltage | DC |
| Power output | 0 W |
| Rail mounting possible | Yes |
| Wall mounting possible | No |
| 1st secondary output voltage | 24-28 V |
| Rated supply voltage at AC 50 Hz | 90-264 V |
| Max. output current 1 | 5 A |
| Nominal value output current 1 | 5 A |
Packing details
| Packing level 1 | 4055144072754 |
Other Technical data
| Built-in height | 0 mm |
| Power consumption | 0 VA |
| Built-in width | 0 mm |
| Modular version | No |
| Suitable for safety functions | No |
| Width in number of modular spacings | 2 |
| Output voltage stabilized | Yes |
| Type of electric connection | Spring clamp connection |
| Stabilized | Yes |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | No |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 60 Hz | 90-264 V |
| Rated supply voltage at DC | 130-373 V |
| Short-circuit-proof | Yes |
| Max. output current 2 | 0 A |
| Max. output current 3 | 0 A |
| Nominal value output voltage 1 | 24 V |
| Nominal value output voltage 2 | 0 V |
| Nominal value output voltage 3 | 0 V |
| Nominal value output current 2 | 0 A |
| Nominal value output current 3 | 0 A |
Description
Power supply Pro 2 1-phase 24 VDC output voltage 5 A output current TopBoost + PowerBoost Protection Coating communication capability
