Power supply Eco 2 1-phase

Name: Power supply Eco 2 1-phase
Brand: WAGO
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Power supply Eco 2 1-phase
Brand	WAGO
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8504 4082 00
ETIM	EC002540
Width	25 mm
Height	100 mm
Depth	90 mm
Voltage type of supply voltage	AC
Power output	0 W
Rail mounting possible	Yes
Wall mounting possible	No
Rated supply voltage at AC 50 Hz	90-264 V
Max. output current 1	1.25 A
Nominal value output current 1	1.25 A

Packing level 1

4055144103922

Built-in height	0 mm
Power consumption	0 VA
Built-in width	0 mm
Modular version	No
Suitable for safety functions	No
Width in number of modular spacings	2
Output voltage stabilized	Yes
Type of electric connection	Spring clamp connection
Stabilized	Yes
Degree of protection (IP)	IP20
Direct mounting possible	No
Secondary voltage adjustable	Yes
Rated supply voltage at AC 60 Hz	90-264 V
Short-circuit-proof	Yes
Max. output current 2	0 A
Max. output current 3	0 A
Nominal value output voltage 1	24 V
Nominal value output voltage 2	0 V
Nominal value output voltage 3	0 V
Nominal value output current 2	0 A
Nominal value output current 3	0 A

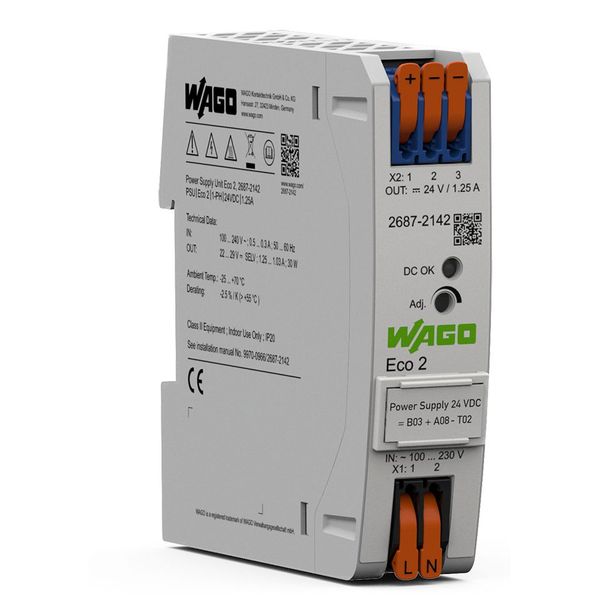

Power supply Eco 2 1-phase 24 VDC output voltage 1.25 A output current DC-OK LED
