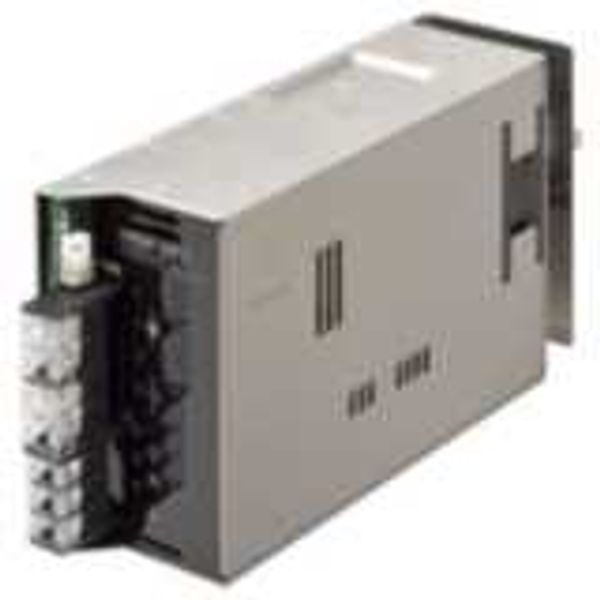

Power Supply, 600 W, 100 to 240 VAC input, 15 VDC, 40 A output, DIN-ra S8FS2078R
Order only
Price (excl. VAT):
197,95 €
EAN: 4549734105101
MPN: S8FS-G60015CD
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Power Supply, 600 W, 100 to 240 VAC input, 15 VDC, 40 A output, DIN-ra S8FS2078R |
| Brand | Omron |
| Categories |
AC/DC Power Supply Units
|
| Country of origin | NL |
| Width | 62.2 mm |
| Height | 120 mm |
| Depth | 220.7 mm |
| Voltage type of supply voltage | AC/DC |
| Power output | 600 W |
| Rail mounting possible | Yes |
| Wall mounting possible | Yes |
| 1st secondary output voltage | 13.5-17.25 V |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Max. output current 1 | 40 A |
| Nominal value output current 1 | 40 A |
Packing details
| Packing level 1 | 4549734105101, 4549734105101 |
Other Technical data
| Built-in height | 120 mm |
| Power consumption | 760 VA |
| Built-in width | 67 mm |
| Modular version | No |
| Suitable for safety functions | No |
| Width in number of modular spacings | 2.2 |
| Output voltage stabilized | Yes |
| Type of electric connection | Screw connection |
| Stabilized | No |
| Degree of protection (IP) | IP00 |
| Direct mounting possible | Yes |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 60 Hz | 100-240 V |
| Rated supply voltage at DC | 120-350 V |
| Short-circuit-proof | Yes |
| Performance level according to EN ISO 13849-1 | None |
| Nominal value output voltage 1 | 15 V |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Downloads
Description
Power Supply, 600 W, 100 to 240 VAC input, 15 VDC, 40 A output, DIN-rail mounting
