  • POWER RELAY WITH MAGNETIC BLOW-OUT

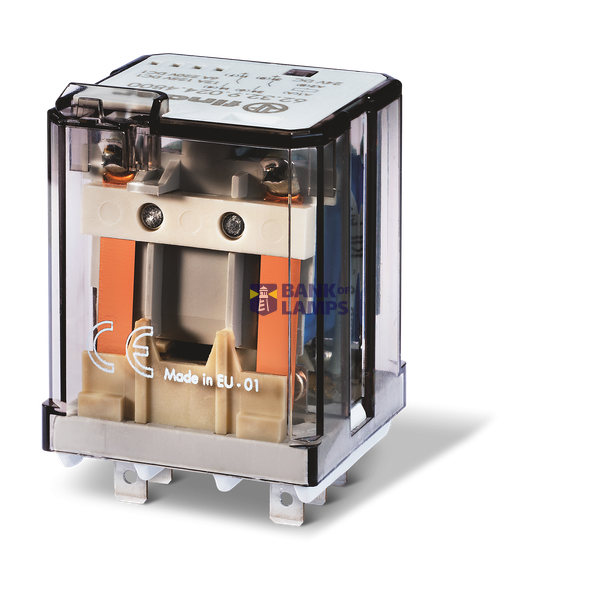

POWER RELAY WITH MAGNETIC BLOW-OUT image 1
FINDER

POWER RELAY WITH MAGNETIC BLOW-OUT

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name POWER RELAY WITH MAGNETIC BLOW-OUT
Brand FINDER
ETIM EC001437
Nominal current 16 A
Type of switch contact Double contact
Type of electric connection Plug-in connection
Rated control supply voltage at AC 50 Hz 400 V
Voltage type for actuating AC
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1

Packing details

Packing level 1 8012823411712
Packing level 2 8012823411705

Other Technical data

Width 38.2 mm
Height 49.1 mm
Depth 35.8 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
With forced-guided contacts No
Complete with socket No
Rated control supply voltage at AC 60 Hz 400 V
Number of contacts as change-over contact 0

Description

Power relays (A): 16 Nr.contacts: 2 Contacts configuration: NO Contact Material: AgSnO2 Type of electric connection: Plug-in connection Coil version: AC Volt AC: 400 V. Polarity free Mono stable Environmental Protection: RT I. Accessories: Socket S.92
