Power rail 765... E-Line Next Fix White I Plug-in terminal 7283800

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

195,55 €

This price is valid until 24.12.25

EAN: 4018242433049

MPN: 7283800

Package: 1

Pallet: 99

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Power rail 765... E-Line Next Fix White I Plug-in terminal 7283800
Brand	TRILUX
Categories	Accessories for track lights
Country of origin	DE

Packing details

Packing level 1	4018242433049, 4018242433049
Packing level 2	4018242747955

Description

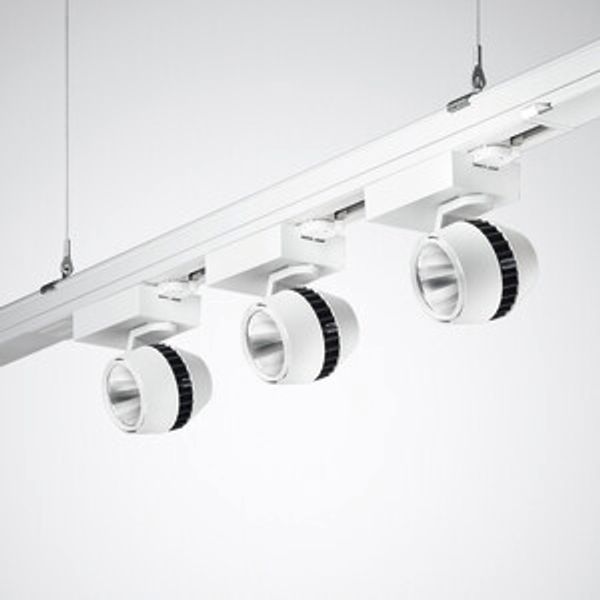

Gear tray for E-Line trunking system 7650Fi. 3-phase circuit track module for mounting of spotlight modules with euro adapter. For combinations with trunking E-Line Fix 0765... 1,475 mm, 2,950 mm or 4,425 mm (connector spacing 1,500 mm) in IP20 or IP64. Compatible with E-Line T5N/LED 07650... support profiles. As single or continuous line luminaire for direct ceiling mounting as well as suspended mounting using accessories to be ordered separately. Electrical connection is self-actuating with insertion of gear tray into the support profile. The choice of circuit is performed by means of plug terminal. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. For digitally dimmable (DALI) spotlight modules. NORDIC system. Colour white (RAL 9016). Length 1474 mm, utilisable track length 800 mm. Complies with DIN 10500 and is suitable for applications in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. When implementing DALI-dimmable applications, ensure system sameness of spotlight and track. Spots in the image are not included in the scope of supply. E-Line 3-phase track modules are not suitable for combining with Flex 370 or Fix 37 universal mounting profiles (07650... Flex 370 or 07650...37).
