Phoenix Contact

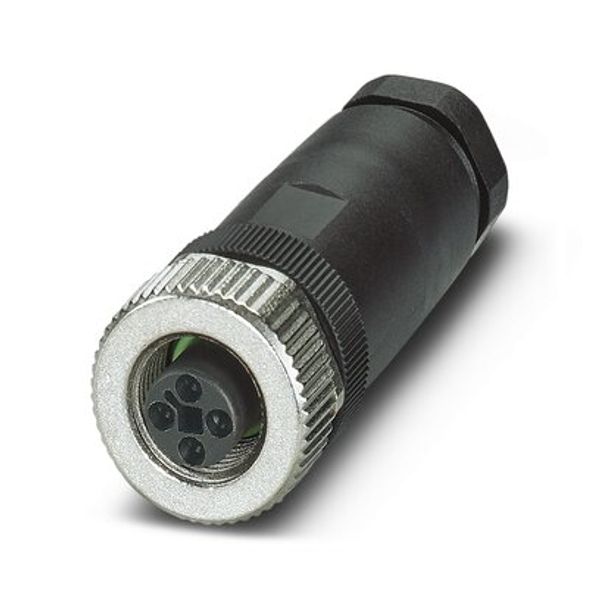

SACC-M12FST-4CON-PG 9-M - Power connector

Order only
Price (excl. VAT):
11,10 € per pcs
This price is valid until 31.12.25
EAN: 4055626131528
MPN: 1418052
Box: 1
Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition New
Manufacture name SACC-M12FST-4CON-PG 9-M - Power connector
Brand Phoenix Contact
Categories Circular Connectors
Country of origin DE
Harmonized System Code 8536 9010 00
Rated voltage 63 V
Contact type Bus
Ambient temperature 85 °C
Diameter connector 0 mm
Rated current In 12 A
For cable outer diameter 6-8 mm
Number of power contacts 0
Number of control contacts 4
Number of data contacts 0

Packing details

Packing level 1 4055626131528, 4055626131528

Other Technical data

Locking mechanism Other
Screened No
Housing material Other
Coating housing Other
With status indication No
Inflammability class of insulation material according to with UL94 V0
Type of electric connection Screw connection
Material of contact surface Gold
Thread size M 0
Over voltage category III
Pollution degree 3
Type of housing Straight
Connectable conductor cross section solid-core 1.5 mm²
With protective conductor No
Min. number of insertion cycles 100
Material thread ring Other

Description

Power connector, 4-position, unshielded, Socket straight M12, T-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm, For direct current up to 12 A/63 V
