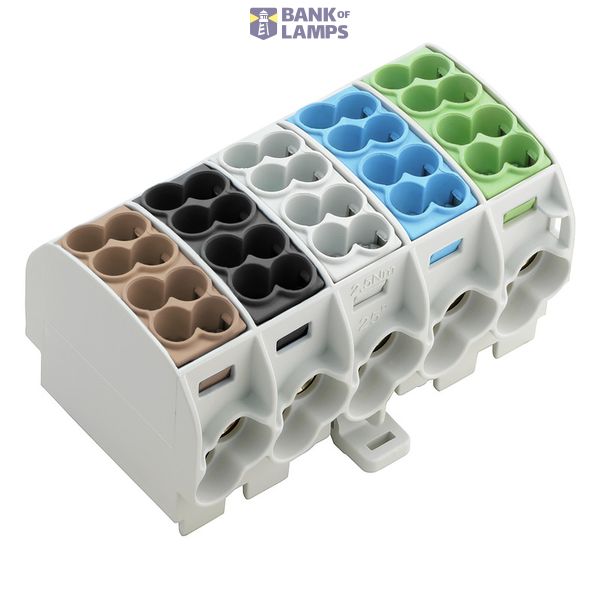

Potential distributor terminal, Screw connection, Light Grey, 25 mm²,

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4099986824973

MPN: 2976330000

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Potential distributor terminal, Screw connection, Light Grey, 25 mm²,
Brand	Weidmüller
Categories	DIN Rail Terminal Blocks
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
ETIM	EC000897
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	1000 V
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	10
Connectable conductor cross section solid-core	1.5-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve	1.5-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	1.5 mm²
Connectable conductor cross section multi-wired	1.5-25 mm²
Rated current In	152 A

Packing level 1

4099986824973, 4099986824973

Colour	Grey
Width	88.8 mm
Height	55.7 mm
Depth	49.3 mm
Operating temperature	-50-130 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Internally connected stages	No
Material insulation body	Thermoplastic
Explosion-tested version 'Ex e'	Yes
