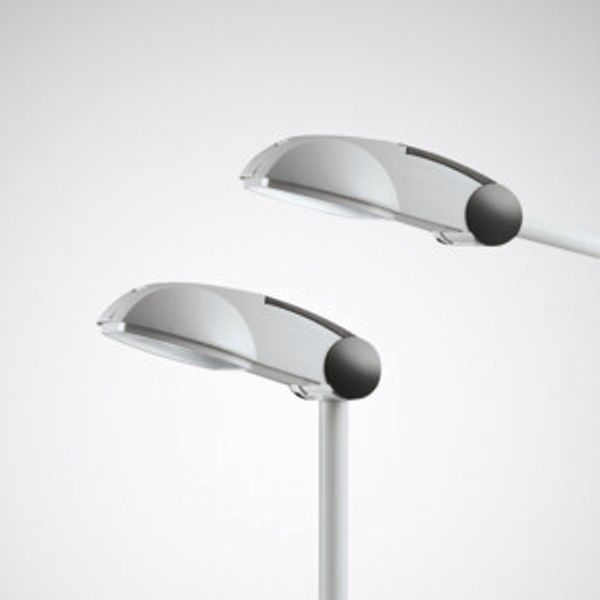

Post-top luminaires Lumega 700 CLO (normal) Lens Multi colour ET 32W 4200lm 70 asymmetric wide (AB7L) IP66 IK09 5 SDCM 7201240

LED post-top and bracket-mounted luminaire. With an intelligent label for quick access to luminaire information by means of QR code. With self-regulating power reduction via integral evaluation electronics.Reduction of luminaire luminous flux to 50 % for a time period of 7 hours (-2 h/+5 h). The central point of the switch-on duration is defined new on a daily basis . For post spigot Ø 76 mm. Inclination angle can be set for post-top mounting 0°...25°, for bracket-mounting 0°...15°. Mast mounting via two stainless steel fixing screws in accordance with EN 60598-2-3. Also suitable for mounting to masts with spigot Ø 42, 48 and 60 mm via reduction pieces to be ordered separately. Passender Mast auf Anfrage. Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide light distribution. For road illumination in compliance with M5 and M6 lighting classes with road width to mounting height ratio of 0.4 to 0.8. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 4200 lm, connected load 30 W, maximum luminous efficiency of luminaire 140 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Versions with 3-level switch for adjusting various luminous flux options on request. Luminaire body of die-cast aluminium. Luminaire body (main colour) and swivel unit (additional colour) in contrasting colours. Luminaire bi-colour light grey and anthracite grey powder coated, highly weather resistant (RAL 7035 / RAL 7016). Sea weather-suitable coating on request. LED module of die-cast aluminium housing with integrated LEDs and optical systems. With sealed clear cover of PMMA. The LED module and the assembled electronic control gear unit form an easily exchangeable functional unit. The luminaire housing is opened with lever catches without use of tools. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK09. Mast available upon request. Windage area fw 0,120 m2. Weight: 11,9 kg. With assembled connection cable. Length of connection cable 8 m. M20 gland as cable strain relief for cable diameter 6 mm to 12 mm. With electronic control gear unit, switchable The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
