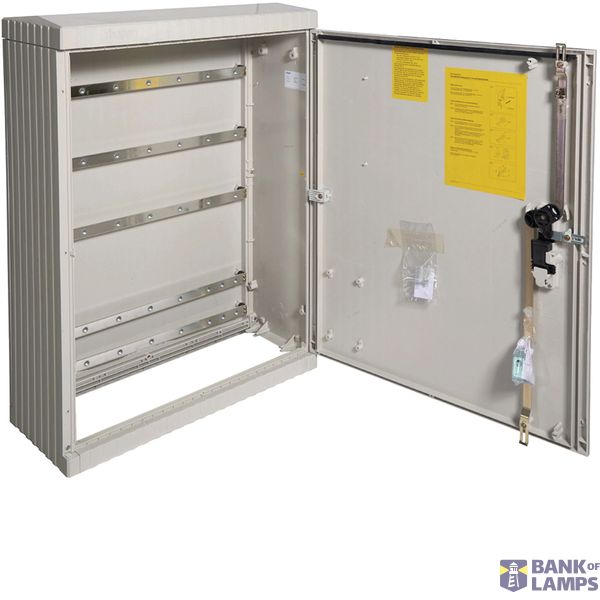

Polyester distribution box, size 1/1005 with rail system, 1005x780x315mm
Order only
EAN: 3250610136003
MPN: ZAK101GA5
Package: 1
Price (excl. VAT)
3 785,37 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Polyester distribution box, size 1/1005 with rail system, 1005x780x315mm |
| Brand | Hager |
| Categories |
Small Distribution Boards
|
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 99 |
| ETIM | EC003517 |
| Nominal current | 430 A |
| Nominal voltage | 400 V |
| Mounting | Pedestal (in-ground mounting) |
| Degree of protection (IP) cabinet | IP44 |
Packing details
| Packing level 1 | 3250610136003, 3250610136003 |
Other Technical data
| Colour | Grey |
| Width | 780 mm |
| Height | 1005 mm |
| Depth | 315 mm |
| RAL-number | 7035 |
| With mounting plate | No |
| Surface protection | Untreated |
| Number of poles | 5 |
| With stand (base) | No |
| With earthing | No |
| Equipped with busbar | Yes |
| Nominal cross section conductor branch cable | 25-240 mm² |
| Nominal cross section conductor main cable | 25-240 mm² |
| Degree of protection (IP) busbar | IP00 |
| Equipped with connectors | No |
| With floor plate | No |
Downloads
Deep link REACH
Declaration DOC CE (Declaration of conformity CE)
Product data sheet
Declaration RoHS
Technical manual
Description
Polyester verdeelkast, grootte 1/1005 met railsysteem, 1005x780x315mm
