PM55A PM55A Digital Pocket Mulimeter, NCV, automatic function selection
Order only
Price (excl. VAT):
81,98 €
EAN: 0095969365314
MPN: 2727721
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | PM55A PM55A Digital Pocket Mulimeter, NCV, automatic function selection |
| Brand | Beha-Amprobe |
| Categories |
Industrial Automation
Measuring instruments |
| Country of origin* | TW |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9030 3200 00 |
| Measured value memory | No |
| Indication | Digital |
| Measuring range selection | Automatic |
| True RMS measurement | No |
| Continuity test | Yes |
| Interface | No |
| Capacitance measurement | Yes |
| Frequency measurement | Yes |
| With decibel measurement (dB) | No |
| Data hold | No |
| IR interface | No |
| Explosion-tested version | No |
| Analogue bar graph display | No |
| Bluetooth interface | No |
| Resistance test/diode test | Yes |
| Inductance measurement | No |
| Lowest resolution, DC voltage | 1 mV |
| Lowest resolution, DC current | 0.1 µA |
| Lowest resolution, AC voltage | 1 mV |
| Lowest resolution, AC current | 0.1 µA |
| Lowest resolution, resistance | 0.1 Ohm |
| With conductivity measurement | No |
| Max. voltage measuring range, AC | 600 V |
| Max. voltage measuring range, DC | 450 V |
| Max. current measuring range, AC | 0.002 A |
| Max. current measuring range, DC | 0.002 A |
| Max. resistance measuring range | 6 MOhm |
| Max. value storage | No |
| Multiple display | No |
| Measuring circuit category | CAT III |
| Min. value storage | No |
| Relative value measurement | No |
| Peak value memory | No |
| Duty cycle measurements | No |
| Degree of protection (IP) | IP2X |
| Temperature measurement | No |
| Max. temperature measuring range | 0 °C |
| Max. capacitance measuring range | 100 µF |
| Lowest resolution, capacitance | 0.1 µF |
| Max. frequency measuring range | 30 kHz |
| Lowest resolution, frequency | 0.01 Hz |
| Analogue bar graph display analogue/logarithmical | No |
| Temperature measurement TC | No |
| Cable length measurement | No |
| Cable symmetry testing for two wire connections a-b-E | No |
| Power and energy measurement | No |
| Harmonics analysis/power quality | No |
| Rotational speed measuring | No |
| Automatic circuit breaker | No |
| Max. voltage measuring circuit category | 300 V |
| With display backlight | No |
Packing details
| Packing level 1 | 0095969365314 |
Downloads
Description

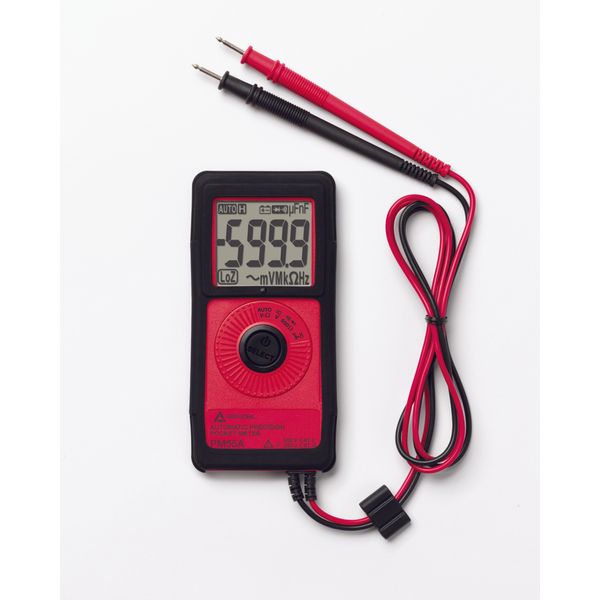

The ultimate shirt-pocket sized meter. Only 3/8” thick and less than 3 oz in weight with full functionality offering ac and dc voltage to 600V, AC and DC current to 2000 ?A, resistance to 6 Megohm, capacitance to 2000 ?F, frequency to 30 kHz, diode test and continuity w/beeper. It also offers VolTect,™ a built-in, non-contact voltage detector for AC voltages.
