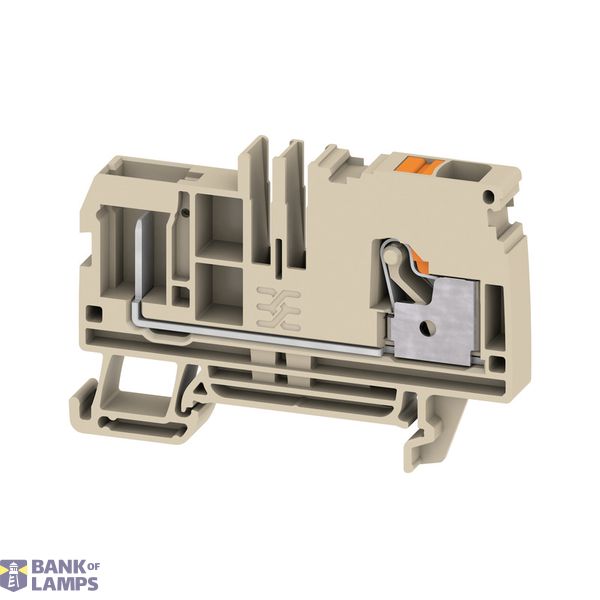

Pluggable terminal, PUSH IN, dark beige, 6 mm², 41 A, 800 V, Number of image 1
Weidmüller

Pluggable terminal, PUSH IN, dark beige, 6 mm², 41 A, 800 V, Number of

Order only
Price (excl. VAT):
Price by request
This price is valid while stock lasts
EAN: 4099986903197
MPN: 3002280000
Package: 1
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Pluggable terminal, PUSH IN, dark beige, 6 mm², 41 A, 800 V, Number of
Brand Weidmüller
Categories DIN Rail Terminal Blocks
Country of origin* RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
ETIM EC000897
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 800 V
Type of electrical connection 1 Push-in clamp connection
Number of levels 1
Number of clamp positions per level 1
Connectable conductor cross section solid-core 0.34-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.34-6 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.34-10 mm²
Connectable conductor cross section multi-wired 0.34-6 mm²
Rated current In 41 A

Packing details

Packing level 1 4099986903197, 4099986903197

Other Technical data

Colour Beige
Width 6.1 mm
Height 66.5 mm
Depth 45.5 mm
Operating temperature -60-130 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Internally connected stages No
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Downloads

Declaration EPD (Environmental Product Declaration)

Description

Terminal block that accepts plug-in connections.
