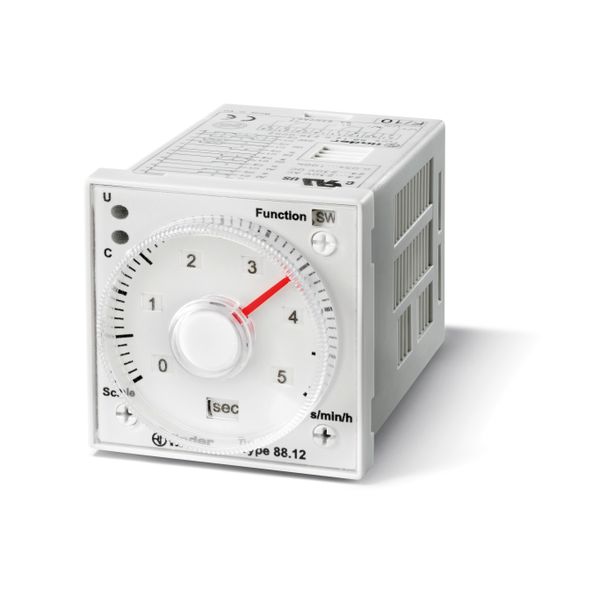

Plug-in Timers 6-functions 2CO 8A/24-230VAC/48VDC (88.12.0.230.0002)
In stock: No
Vendor stock: No
Minimal order quantity: 5
Price (excl. VAT):
110,38 €
per pcs
Subtotal: 551,90 €
MOQ: 5
EAN: 8012823304472
MPN: 881202300002
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Plug-in Timers 6-functions 2CO 8A/24-230VAC/48VDC (88.12.0.230.0002) |
| Brand | FINDER |
| Categories |
Timer Relays
|
| Country of origin | IT |
| Harmonized System Code | 8536 4900 00 |
| Clock function, starting with pulse, variable | Yes |
| With semiconductor output | No |
| Function delay-on energization | Yes |
| Time range | 0.05-360000 s |
| Type of electric connection | Plug-in connection |
| Rated control supply voltage at AC 50 Hz | 230 V |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, delayed, change-over contact | 2 |
| Suitable for DIN rail (top hat rail) mounting | No |
| Voltage type for actuating | AC/DC |
Packing details
| Packing level 1 | 8012823304489 |
| Packing level 2 | 8012823304472 |
Other Technical data
| Nominal current | 8 A |
| Width | 47.9 mm |
| Height | 47.9 mm |
| Depth | 77.5 mm |
| Suitable for front mounting | Yes |
| With plug-in socket | Yes |
| Remote operation possible | No |
| Suitable as remote control | No |
| Function flashing, starting with pause, fixed time | No |
| Function flashing, starting with pulse, fixed time | No |
| Clock function, starting with pause, variable | No |
| Function floating contact on energization | Yes |
| Function star-delta | No |
| Function delay on de-energization | No |
| Function floating contact on de-energization | No |
| Function pulse shaping | Yes |
| Rated control supply voltage at AC 60 Hz | 230 V |
| Rated control supply voltage at DC | 230 V |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, change-over contact | 0 |
| Number of outputs, delayed, normally closed contact | 0 |
| Number of outputs, delayed, normally open contact | 0 |
| Pluggable on auxiliary contact block | No |
| Outputs, reversible delayed/undelayed | Yes |
Downloads
Description
Plug-in timers Nr.contacts: 2 Contacts configuration: CO Contact Material: AgNi (A): 8 A. Coil version: AC/DC Volt AC: 230 V. Volt DC: 230 V. Suitable for front mounting: yes With plug-in socket: yes Remote operation possible: no Suitable as remote control: no Function flashing, starting with pause, fixed time: no Function flashing, starting with pulse, fixed time: no With semiconductor output: no Function delay-on energization: yes Function floating contact on energization: yes Function star-delta: no Time range: from 0.05 to 360000 s. Function delay on de-energization: no Function floating contact on de-energization: no Type of electric connection: Plug-in connection Suitable for DIN rail (top hat rail) mounting: no Protection Category: IP 40
