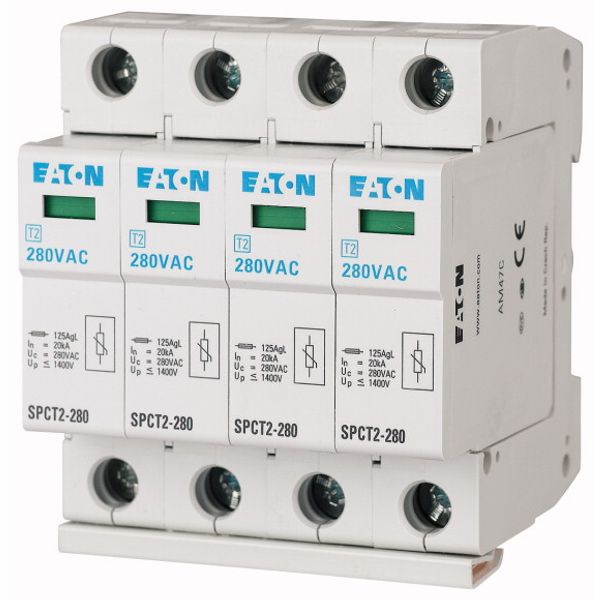

SPCT2-280/4 Plug-in surge arresters, 4p, 280VAC, 4x20kA
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
88,43 €
EAN: 4015081640874
MPN: 167596
Package: 1
Box: 30
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SPCT2-280/4 Plug-in surge arresters, 4p, 280VAC, 4x20kA |
| Brand | EATON |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | RO |
| Harmonized System Code | 8536 3090 00 |
| Voltage protection level | 1.4 kV |
| Nominal discharge surge current (8/20) | 20 kA |
| Nominal voltage AC | 280 V |
| Nominal voltage DC | 0 V |
| Voltage protection level L-N | 0 kV |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 0 V |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | Yes |
| System configuration TN-C-S | Yes |
Packing details
| Packing level 1 | 4015081640874 |
| Packing level 2 | 9008790474644 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | No |
| Number of conductors (without earthing) | 4 |
| Construction size | 4 modular spacing |
| Max. continuous voltage AC | 280 V |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Max. continuous voltage DC | 0 V |
| Voltage protection level N-PE | 0 kV |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 25 mm² |
| Max. conductor cross section flexible (fine-strand) | 35 mm² |
| System configuration TN-C | No |
| System configuration TN-S | Yes |
| System configuration TT | No |
| System configuration other | Yes |
| Max. discharge surge current (8/20) | 40 kA |
| Short-circuit breaking capacity (Isccr) | 0 kA |
| Max. overcurrent protection device, parallel connection (fuse) | 0 A |
| Max. overcurrent protection device, series connection (fuse) | 125 A |
| Integrated short-circuit protection | No |
| Integrated short-circuit protection selective to fuse gG | 0 A |
| Leakage-current free | No |
Description
This component converts electrical signals into physical motion within a system, providing precise actuation for mechanical operations. It is commonly integrated into larger assemblies requiring controlled movement or automated adjustments.
**Physical Specifications:**
Compact housing constructed from durable materials for long-term use in industrial applications. Features standardized mounting points to fit compatible chassis configurations. Connector type designed for streamlined integration with standard power supply interfaces.
**Performance Parameters:**
Operates within predefined voltage and current ranges, ensuring compatibility with regulated systems. Motion range calibrated for uniform output over extended duty cycles — no uneven performance under rated load conditions.
- Operating voltage range: 12V–24V DC maximum tolerance.
- Current draw varies depending on load—approximately 0.8A peak consumption.
- Not suitable for environments exceeding 60°C ambient temperature.
- Requires external controls—does not include onboard adjustment features.
- Recommended maintenance interval: every 10,000 hours of operation.
