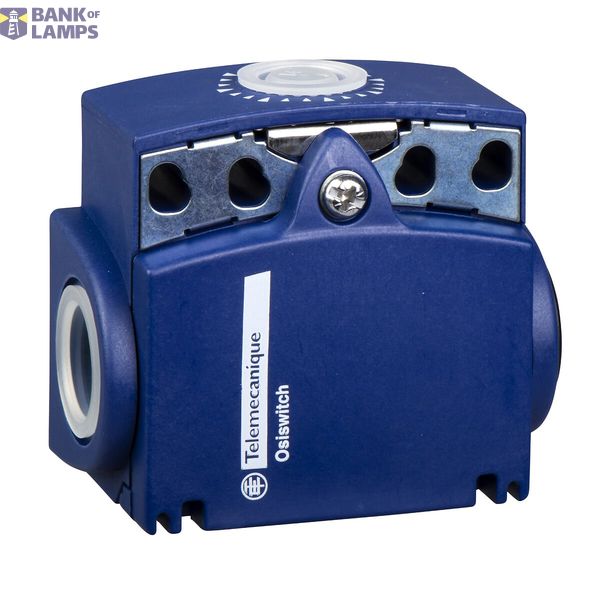

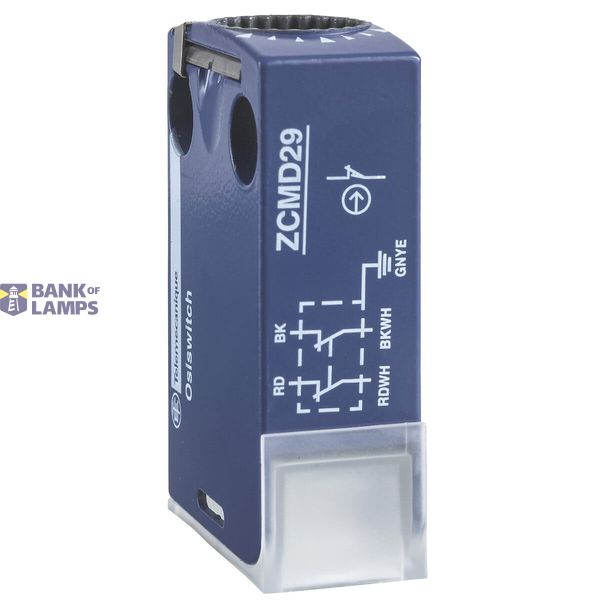

PLUG IN LIMIT SWITCH ROLLER LEV M12 CONNSPECIFIC WIRING SPDT (CT à 1 C
Order only
EAN: 3666916094426
MPN: XCKJ110513DSA9
Package: 1
Price (excl. VAT)
119,97 €
per unit
MOQ: 1
EDT to our warehouse: 21-26 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | PLUG IN LIMIT SWITCH ROLLER LEV M12 CONNSPECIFIC WIRING SPDT (CT à 1 C |
| Brand | Telemecanique |
| Categories |
Limit Switches
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 90 |
| ETIM | EC000030 |
| Switching function | Other |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Rated operation current Ie at DC-13, 230 V | 0.27 A |
| Suitable for safety functions | No |
| With status indication | No |
| Type of control element | Other |
Packing details
| Packing level 1 | 3666916094426 |
Other Technical data
| Housing material | Metal |
| Coating housing | Other |
| Type of interface for safety communication | Other |
| Type of electric connection | Other |
| Explosion safety category for gas | Other |
| Explosion safety category for dust | Other |
| Construction type housing | Other |
| Degree of protection (IP) | IP66/IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of interface | Other |
| Output electronic | No |
| Width sensor | 43 mm |
| Height of sensor | 84 mm |
| Length of sensor | 36 mm |
| Switching function latching | No |
| Ambient temperature during operating | -25-70 °C |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Alignment of the control element | Other |
Downloads
Description

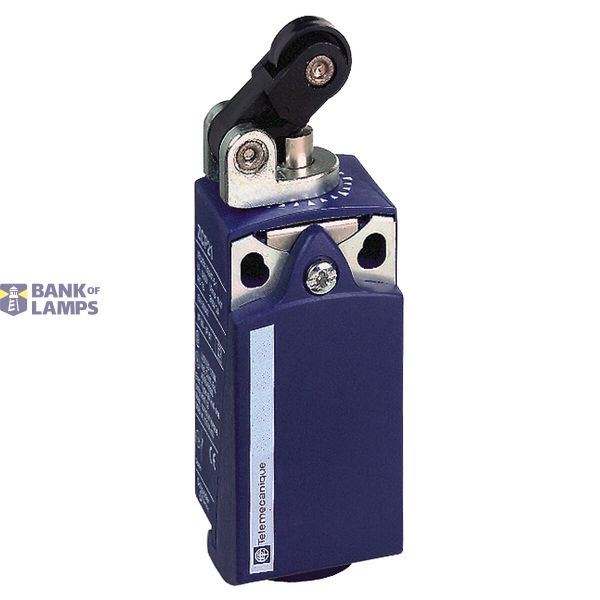

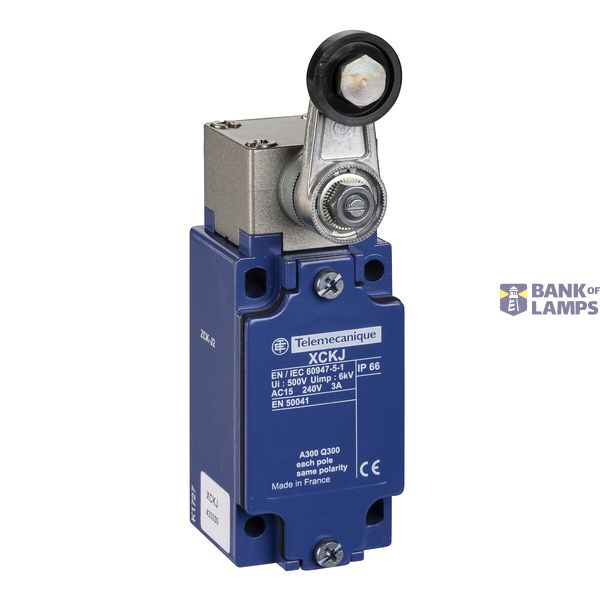

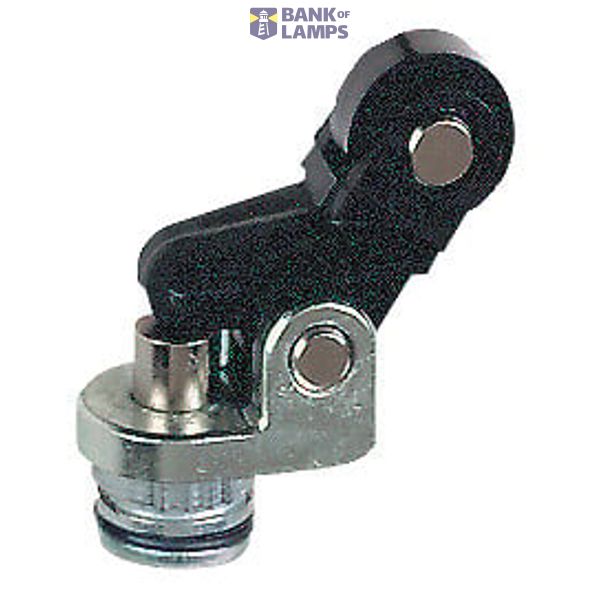

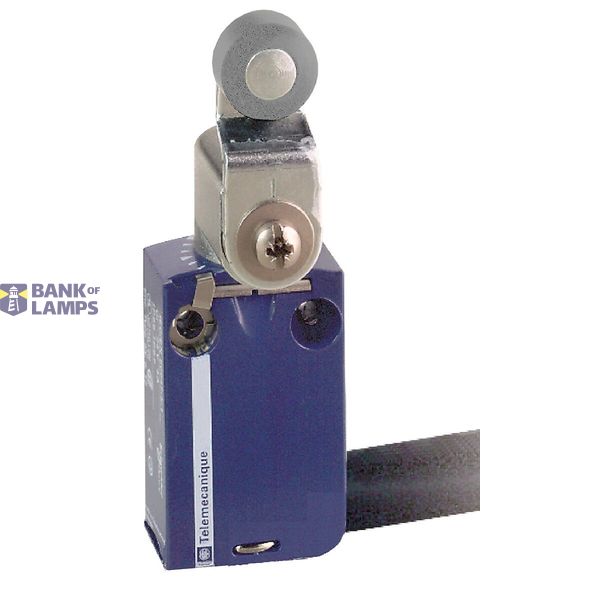

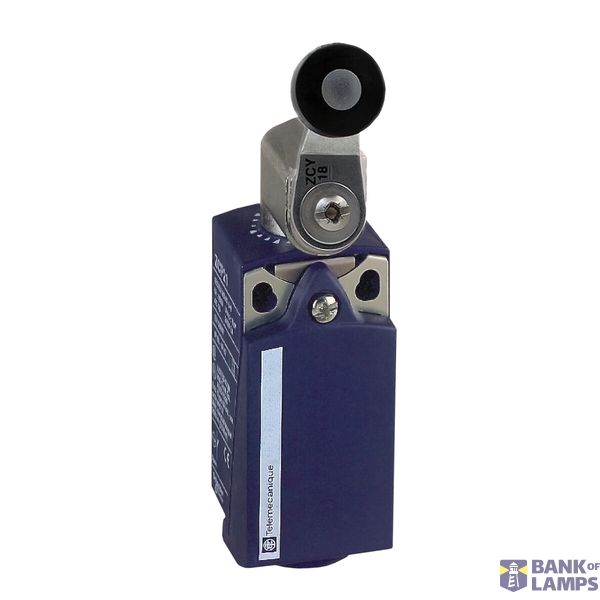

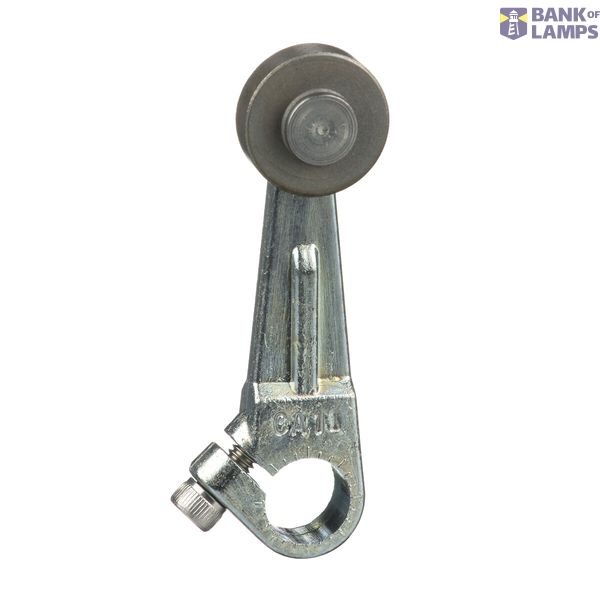

This product is part of the XC Standard limit switch range. The limit switch is a device that converts a mechanical motion into an electrical control signal. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector. It has one C/O snap action contacts and provides switch actuation by 30 degree cam. It has a rated operational current of 3A at 240VAC (A300) (AC-15), 0.27A at 250VDC (Q300) (DC13). Its mechanical durability is 30 million operating cycles and electrical durability is 5 million operating cycles. It has a spring return metal roller lever and supports lateral approach in one or two programmable directions. The movement of the operating head is rotary. It is furnished with screw clamp terminals for electrical connection. Limit switch has one entry tapped for PG13.5 cable gland. It is compliant with UL, CSA, CCC, and EN/IEC standards and is IP66 rated. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
