| Item condition | New |
| Manufacture name | Terminal Block SP2.5/1-L 2.5mm² 3043019 |
| Brand | Phoenix Contact |
| Categories |
Terminal Block Accessories
Terminal block connector |
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC002021 |
| Model | Pin insert |
| Rated voltage | 500 V |
| Connectable conductor cross section solid-core | 0.08-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.14-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.08-2.5 mm² |
| Connectable conductor cross section multi-wired | 0.08-2.5 mm² |
| Connectable conductor cross section | 0.08-4 mm² |
| Rated current In | 24 A |
| Packing level 1 | 4017918894870, 4017918894870 |
| Width | 5.15 mm |
| Number of poles | 1 |
| Type of electric connection | Spring clamp connection |
| Tackable | No |
| Total number of poles (without ground contact) | 0 |

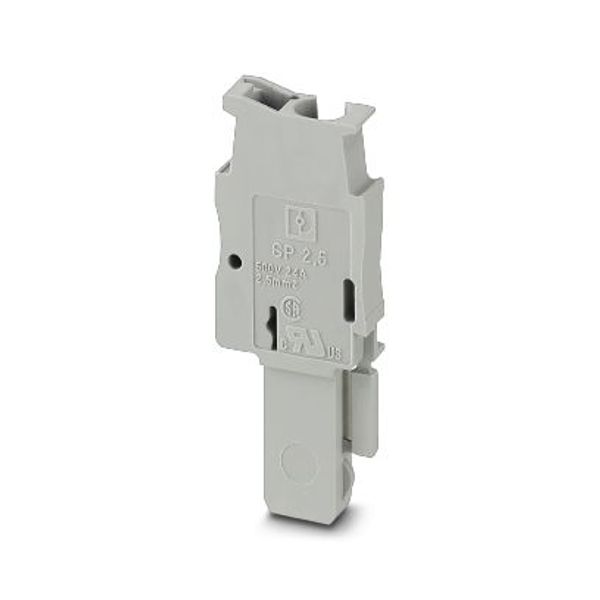

Plug, nom. voltage: 500 V, nominal current: 24 A, number of positions: 1, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm²- 4 mm², color: gray
