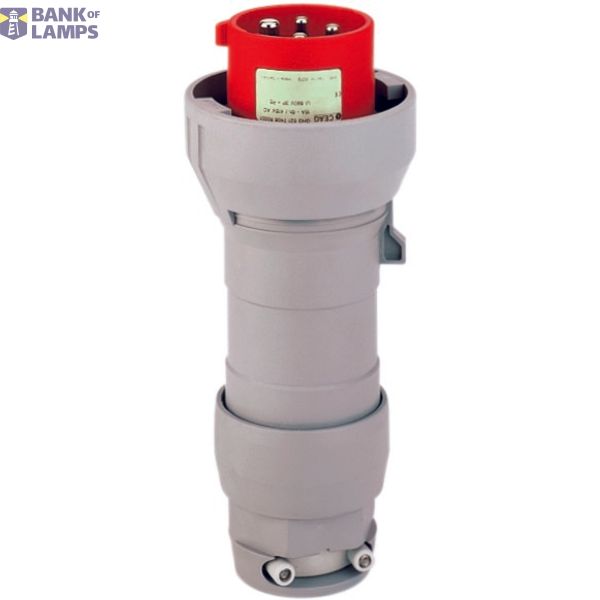

PLUG 32A-5POL-6H/415V D12-28MM image 1
PLUG 32A-5POL-6H/415V D12-28MM image 2
PLUG 32A-5POL-6H/415V D12-28MM thumbnail 1
PLUG 32A-5POL-6H/415V D12-28MM thumbnail 2
EATON

PLUG 32A-5POL-6H/415V D12-28MM

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name PLUG 32A-5POL-6H/415V D12-28MM
Brand EATON
ETIM EC000140
Number of poles 5
IEC-amperage 32 A
Connection system Screwed terminal
Degree of protection (IP) IP66

Packing details

Packing level 1 4250217407048

Other Technical data

Cable entry Other
Material Plastic
Surface treatment contacts Other
Angle of plug Straight
Phase inverter No
Contact material Other
Military model No
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 380-415 V (50+60 Hz) red

Description

Plug for industrial application, 32 A, 5-pole346-415 V, 6 h, 1 cable gland
