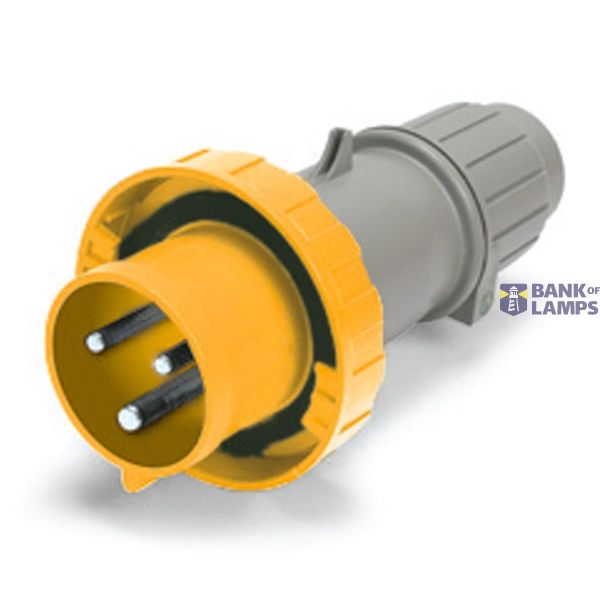

PLUG 16A 2P 3W 4h IP67 100-130V
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | PLUG 16A 2P 3W 4h IP67 100-130V |
| Brand | Scame |
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC000140 |
| Number of poles | 3 |
| IEC-amperage | 16 A |
| Connection system | Screwed terminal |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 8001636559407 |
| Packing level 2 | 8001636559414 |
Other Technical data
| RAL-number | 7.035 |
| Cable entry | Gland nut |
| Material | Plastic |
| Surface treatment contacts | Nickel-plated |
| Angle of plug | Straight |
| Phase inverter | No |
| Contact material | CuZn |
| Military model | Yes |
| Clock hour position | 4 h |
| Identification colour | Yellow |
| Voltage according to EN 60309-2 | 110 V (50+60 Hz) yellow |
Description
16A 2P 3W 4h 100-130V 50/60Hz Screw terminals
