PLD O 18L105-740 R/S BS 3550 T60 CL1 GY - LED Amenity lighting lantern
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 051,23 €
EAN: 3607640357487
MPN: 96272421
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PLD O 18L105-740 R/S BS 3550 T60 CL1 GY - LED Amenity lighting lantern |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | FR |
| Colour rendering index CRI | 70-79 |
| Height/depth | 567 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 60 W |
| Rated luminous flux according to IEC 62722-2-1 | 6645 lm |
Packing details
| Packing level 1 | 3607640357487 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Colour housing | Grey |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Diameter | 564 mm |
| Housing material | Aluminium |
| Material cover | Plastic, transparent |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
Description

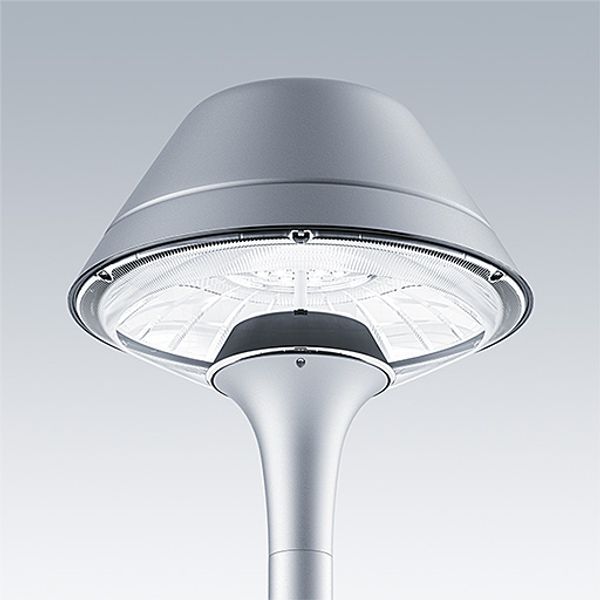

Plurio Direct: A decorative post-top LED lantern with radially symmetric distribution. LED driver with 18 LEDs driven at 1,05A. Class I electrical, IP66, IK08. Base: cast aluminium, powder coated silver-grey. Canopy: original shape, aluminium, textured silver-grey. Diffuser: UV stabilised, clear polycarbonate with anti-glare prisms. Direct, lens based optic with internal reflector. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Complete with 4000K LED. Post top mounting to Ø60mm column. _x000D_
_x000D_
Upward lighting emissions below 1%._x000D_
_x000D_
Dimensions: Ø564 x 567 mm_x000D_
Luminaire input power: 60 W_x000D_
Luminaire luminous flux: 6645 lm_x000D_
Luminaire efficacy: 111 lm/W_x000D_
Weight: 9.5 kg_x000D_
Scx: 0.199 m²
