PLATO625ILQ 20/25/30/36 930 WH9016 MP PW
Order Only
Price (excl. VAT):
86,29 €
EAN: 4046075161617
MPN: 3118509
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PLATO625ILQ 20/25/30/36 930 WH9016 MP PW |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
|
| Country of origin | CN |
| Harmonized System Code | 9405 1190 00 |

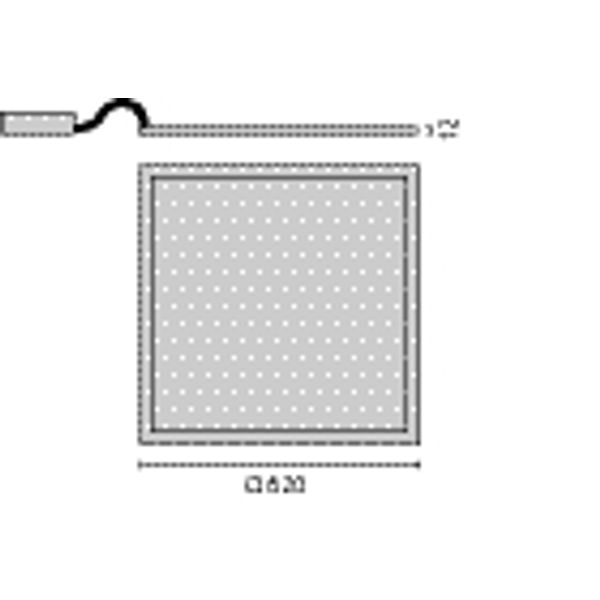

| Width | 620 mm |
| Colour housing | White |
| Colour rendering index CRI | 90-100 |
| Length | 620 mm |
| Height/depth | 12 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK06 |
| Nominal voltage | 220 V |

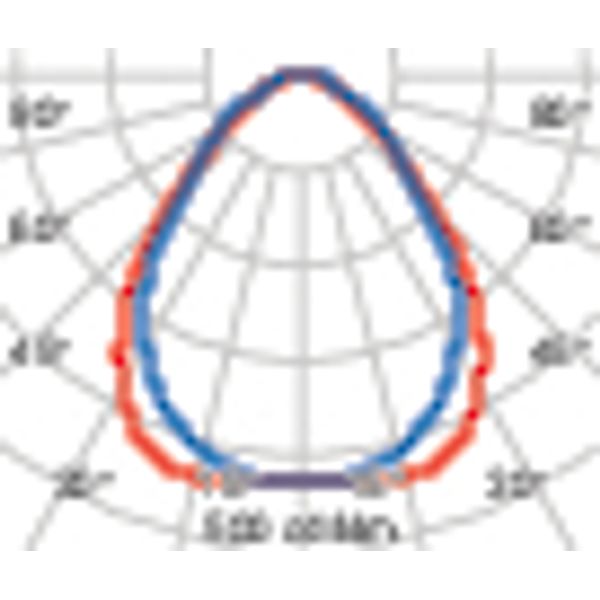

| Beam angle | Extreme wide beam >80° |
| Colour temperature | 3000 K |
| Max. system power | 40 W |
Packing details
| Packing level 1 | 4046075161617, 4046075161617 |
Other Technical data
| Protection class | I |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 20 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Nominal current | 167 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Through wiring included |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Degree of protection (NEMA) | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 0 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 16 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 79 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 55 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0.8 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Positions |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Surface protection housing | Powder coating |
| Power factor | 0.9 |
Downloads
Description
Vierkante led inlegarmatuur voor binnenshuis, bestaande uit: Behuizing van geëxtrudeerd gelakt aluminium. Opaalwitte afscherming voor een optimale lichtverstrooiing en een hoge gelijkmatigheid (OP). Kleurtolerantie volgens MacAdam ≤3 SDCM. Ook leverbaar in dim push button. LED Sidelight-technologie voor een gelijkmatige lichtverdeling over de gehele zone. Vier vermogensniveaus instelbaar via een schakelaar. PLATO SQUARE 625 MULTIPOWER: Anti-verblinding DIN EN 12464-1 (op het laagste vermogensniveau). Inbouwarmaturen geschikt voor raster- en cassetteplafonds. Armatuur inclusief driver. Beschermingsklasse IP43* (voor lichtuitstralingsoppervlak voor installatie in gesloten plafonds).
