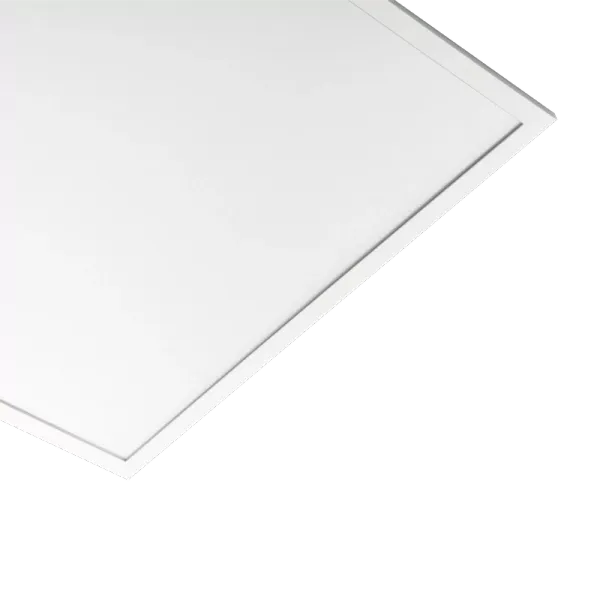

PLATE 600 MP 29 8TW UGR
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 8018367732962
MPN: 3117964
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | PLATE 600 MP 29 8TW UGR |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
Built-in mounting lamps |
| Country of origin | CN |
| Harmonized System Code | 9405 1190 00 |

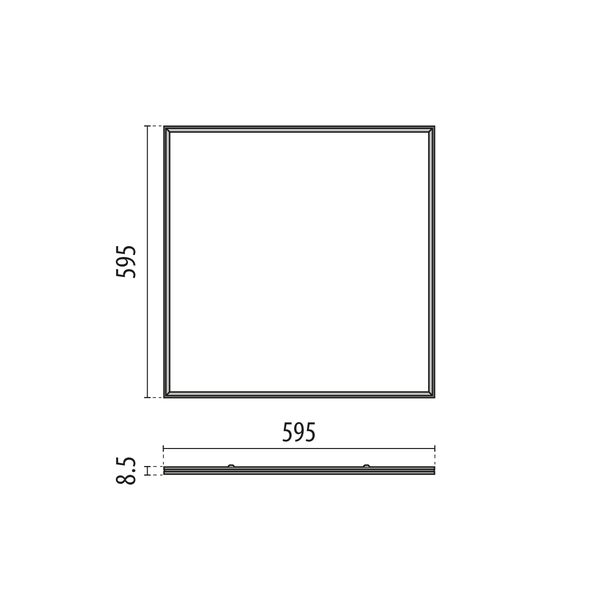

| Width | 595 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 595 mm |
| Height/depth | 9 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK06 |
| Nominal voltage | 220 V |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 2700 K |
| Max. system power | 33 W |
Packing details
| Packing level 1 | 8018367732962, 8018367732962 |
Other Technical data
| Protection class | II |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Other |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 33 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic matt/satinized |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Nominal current | 850 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -30 °C |
| Filament test according to IEC 60695-2-11 | 750 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 35 |
| Max. number of luminaires per miniature circuit breaker B16 | 35 |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Surface protection housing | Powder coating |
| Power factor | 0.9 |
Downloads
Description

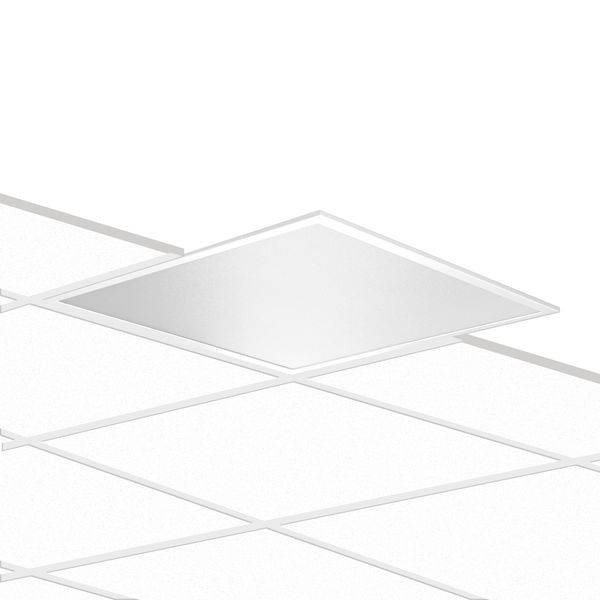

Ultra plat LED inlegarmatuur voor zichtbare draagprofielen bestaande uit: Lijst van spuitgietaluminium profiel, met poedercoating. Micro-prisma diffuser van technopolymeer voor homogene diffusie, verminderde verblinding en hoge lichtuniformiteit. UGR<19. Externe ballast ON/OFF inbegrepen. Opties: Het armatuur kan ook als pendelarmatuur gemonteerd worden als men het accessoire "ophangkit" gebruikt. Kit voor oppervlak-installatie. Noodverlichting 3h. Dimbare driver 1 -10 V. Dimmen (DALI).
