PLANETE 400AD DL LED EMERGENCY M25
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | PLANETE 400AD DL LED EMERGENCY M25 |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 144 mm |
| Length | 460 mm |
| Height/depth | 140 mm |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 8435156920728 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-55 °C |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description

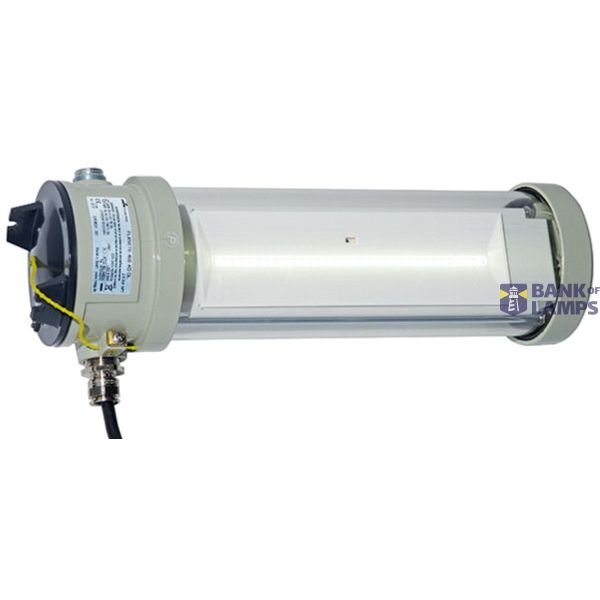

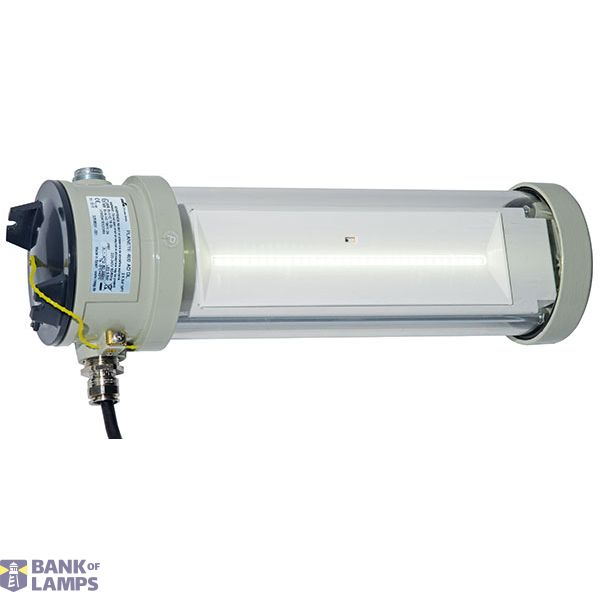

Ex-d self-contained escape sign luminaires for Zone 1/21planete 400 AD DL, 1 x M25 metal thread with threaded plug, 1 x M25 metal thread with dust cap
