PLAIN DOOR+FRAME W600 33M PRISMA G IP55

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

407,42 €

This price is valid until 24.12.25

EAN: 3303430083290

MPN: 08329

Package: 1

Pallet: 22

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	PLAIN DOOR+FRAME W600 33M PRISMA G IP55
Brand	Schneider Electric
Categories	Mounting Сomponents
Country of origin	FR
Width	600 mm
Height	1750 mm
Depth	26 mm
Material	Steel
Degree of protection (IP)	IP55

Packing details

Packing level 1	3303430083290
Packing level 2	3303430083299

Other Technical data

Colour	White
Model	Panel door
EMC-version	No
Surface finishing	Powder coating
Version as glazed door	No
Version as door for disconnecting switch interlocking	No

Downloads

ECOP (Environmental Code of Practice)

Description

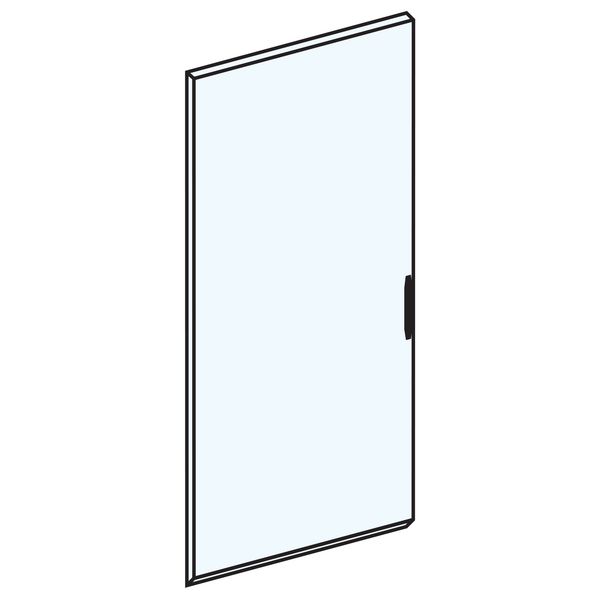

Plain door for Prisma. It is compatibility with Prisma G. It provides door, handle, keylock (key 405), other keylock which inserting to be ordered separately and 2 hinge. It provides electrophoresis treatment and hot-polymerised polyester epoxy powder protective treatment. It provides IP55 degree of protection. It provides IK protection which includes IK10 conforming to EN/IEC 62262. It could be installed in 600 mm width Wall-mounted or Extension enclosure. It has matt or smooth surface finish and white (RAL 9001) colour. It is suitbale for 33 50-mm vertical modules. Sold in lots of 1 unit. The door could be reversible opened with 180 ° door opening angle with 3 locks. The enclosure material had treated sheet steel. It is compliant with both IEC 61439-1 and IEC 61439-2. It is also compliant with Green Premium (RoHS/REACH).
