Powerline sensor input 230V

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

90,55 €

This price is valid until 31.12.25

EAN: 4010312316740

MPN: 31100007

Package: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Powerline sensor input 230V
Brand	ELTAKO
Categories	Bus System Devices (KNX/Modbus)
Country of origin	CN
Harmonized System Code	8526 9200 00
Mounting method	Flush mounted (plaster)
Model	Other
Bus system KNX	No
Other bus systems	None

Packing details

Packing level 1	4010312316740, 4010312316740
Packing level 2	4010312316740
Packing level 3	4010312316740

Other Technical data

Number of inputs	1
Bus system radio frequent	No
Bus system Powernet	Yes
Bus system LON	No
Bus system KNX radio	No

Downloads

Deep link product page

Description

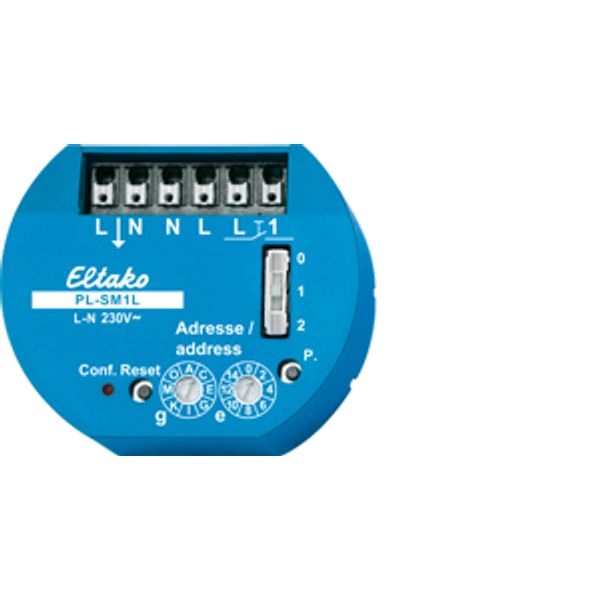

Powerline sensor input with 1 channel. 53x43mm, 25mm deep for mounting in 58mm switch boxes. Sensor input 230V. Standby loss only 0,5 watt. To control and switch at different places. When pressed, the sensor input acts on all actuators with the same address or as a central pushbutton if element address 0 is used. Two rotary switches are located on the front for address assignment: The left rotary switch defines the group address g with 16 alphabetical values from A to P. The right rotary switch defines the element address e with 16 numerical values from 0 to 15. Above it is a slide switch which acts as a configuration switch with positions 0, 1 and 2. Position 0: Sensor input with reset function as pushbutton. Position 1: Sensor input functions as NO contact. Position 2: A change-over switch is evaluated as a pushbutton. All entries and configurations can also be accessed via the mains using the PC software SIENNA Professional. To the left of the rotary switches is a red LED which indicates all activities. Next to it is a reset pushbutton and to the right of that is a service pin. For functions, please refer to the operating instructions. The terminals located above are plug-in terminals for conductor cross-sections of 0.2 mm² to 1.5 mm².
