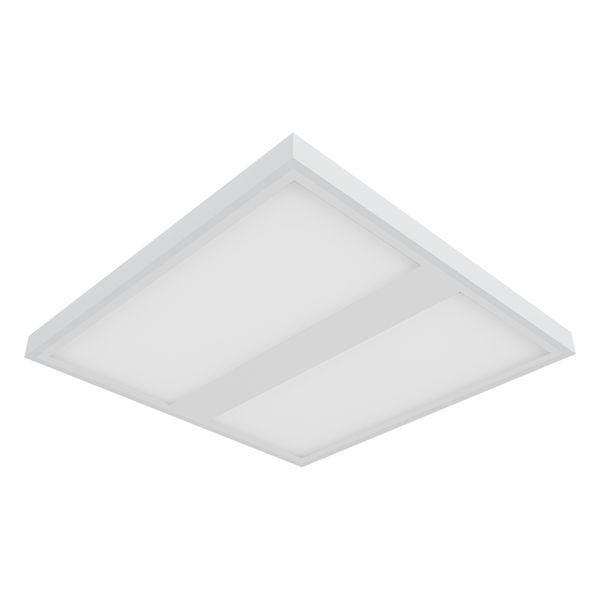

PL PROT 600 ZB P 36W 840 U19 LEDV image 1

Panel Luminaire Prot 600 ZB P 36W 840 U19

Order only
EAN: 4099854514593
MPN: 4099854514593
Package: 1
Box: 5
Price (excl. VAT)
132,04 €
per unit
MOQ: 1
EDT to our warehouse: 1-4 weeks
Price valid until 13.12.26 or while in stock

Technical Information

Item condition New
Manufacture name PL PROT 600 ZB P 36W 840 U19 LEDV
Brand LEDVANCE
Categories Wall and ceiling luminaires
Ceiling lighting
Integrated Lighting
Surface mounted lighting
Country of origin* CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 9405 1190 00
ETIM EC002892
Width 595 mm
Colour housing White
Colour rendering index CRI 80-89
Length 595 mm
Height/depth 34 mm
Lamp type LED not exchangeable
Impact strength IK06
Degree of protection (IP) IP54
Beam angle Extreme wide beam >80°
Max. system power 36 W
Rated luminous flux according to IEC 62722-2-1 5040 lm
Luminaire efficacy 140 lm/W

Packing details

Packing level 1 4099854514593
Packing level 2 4099854514609

Other Technical data

Protection class II
Connection type Push-in clamp
Voltage type AC/DC
With movement sensor No
Suitable for suspended mounting Yes
Number of poles 3
Housing material Aluminium
With light source Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Suitable for built-in mounting Yes
With control gear No
Suitable for surface mounting Yes
Colour of light White
Rated life time L70/B50 at 25 °C 100000 h
Colour consistency (McAdam ellipse) SDCM3
No dim function No
Suitable for ceiling mounting Yes
Power factor 0.9
