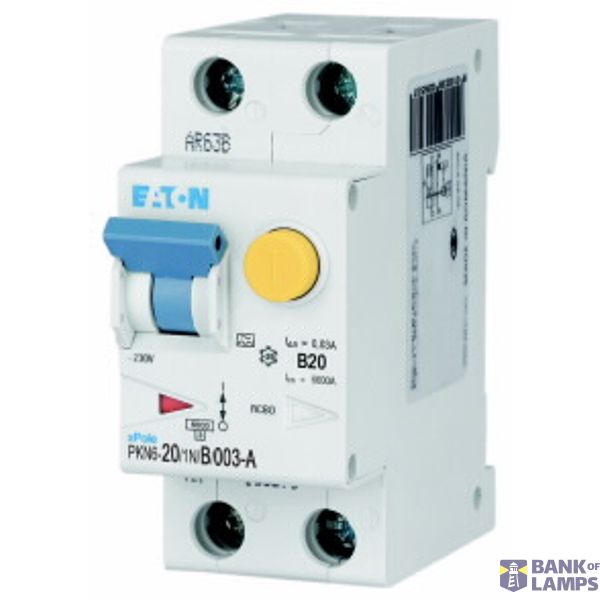

PKN6-20/1N/B/003-A-BL Eaton Moeller series xPole - PKN6/M RCBO - residual-current circuit breaker with overcurrent protection
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | PKN6-20/1N/B/003-A-BL Eaton Moeller series xPole - PKN6/M RCBO - residual-current circuit breaker with overcurrent protection |
| Brand | EATON |
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| ETIM | EC000905 |
| Rated current | 20 A |
| Rated voltage | 230 V |
| Release characteristic | B |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Ambient temperature during operating | -25-40 °C |
| Number of poles (total) | 2 |
Packing details
| Packing level 1 | 9010238885400 |
| Packing level 2 | 9010238136939 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 60 mm |
| Rated insulation voltage Ui | 440 V |
| Surge current capacity | 0.25 kA |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 2 |
| Frequency | 50 Hz |
| Concurrently switching neutral conductor | Yes |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 0 kA |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| With interlocking device | No |
| Flush-mounted installation | No |
| Anti-nuisance tripping version | No |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Disconnection characteristic | Undelayed |
| Rated short-circuit breaking capacity according to EN 61009 | 6 kA |
Description
RCD/MCB combination switch, PKN6, 1-pole+N, tripping characteristic: B, rated current In: 20 A, rated switching capacity according to IEC/EN 61009: 6 kA, rated fault current: 0.03 A, AC and pulse-current sensitive, partly surge-proof 250 A, Switchgear for residential and commercial applications
