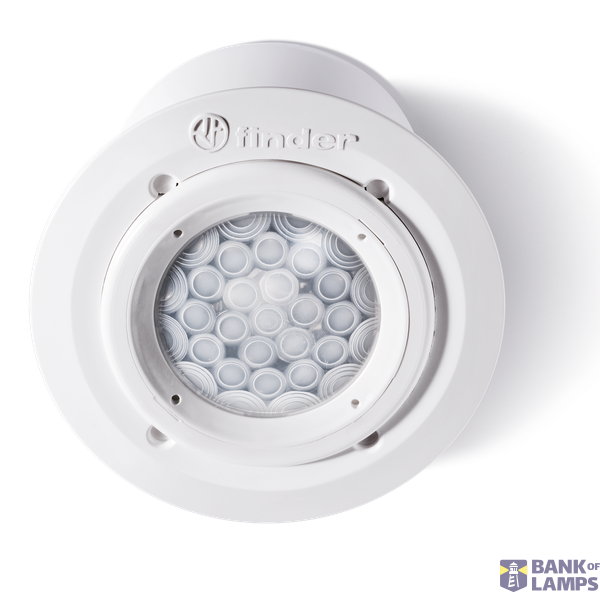

PIR MOVEMENT DETECTOR
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | PIR MOVEMENT DETECTOR |
| Brand | FINDER |
| ETIM | EC000133 |
| Mounting method | Surface mounted (plaster) |
| Colour | White |
| Model | Movement sensor |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. switching power | 1000 W |
| Degree of protection (IP) | IP40 |
| Min. switch-on time | 10 s |
| Max. duty cycle | 12 min |
| Response value luminosity adjustable | Yes |
| Sensor type | Passive infrared |
Packing details
| Packing level 1 | 8012823397283 |
| Packing level 2 | 8012823397276 |
Other Technical data
| Halogen free | Yes |
| Voltage type | AC/DC |
| With remote control | No |
| Staircase monitoring | Yes |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Temperature | -10-50 °C |
| Max. starting current | 20 A |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | No |
| Response value luminosity | 5-350 lx |
| Suitable for C-load | Yes |
| Remote operation | No |
| HVAC-control | Yes |
| Constant light control | No |
| Substation input | No |
| RAL-number (similar) | 9010 |
| With signal unit | Yes |
| Control current | 10 mA |
| Networkable | No |
| Forced switch off | No |
| With alarm function | No |
| Transparent | Yes |
| Animal zone | Yes |
| Surface finishing | Matt |
| Suitable for wall mounting | No |
| With DALI interface | No |
| Forced switch on | No |
| Suitable for ceiling mounting | Yes |
| Anti-bacterial treatment | No |
Description
PIR movement detectors Nr.contacts: 1 Contacts configuration: NO Contact Material: AgSnO2 Nominal voltage: 250 V. Mounting method: Surface mounted (plaster) Colour: White Model: Movement sensor Halogen free: yes Connection type: Screwed terminal Voltage type: AC/DC Switch-off delay: from 10 to 720 s. Frequency: from 50 to 60 Hz. With remote control: no Staircase monitoring: yes Suitable for wireless transmission: no Material quality: Thermoplastic Max. switching power: 1000 W. Temperature: from -10 to 50 °C. Max. starting current: 20 A. Material: Plastic Response value sensitivity adjustable: yes Dim function with dimmer basic element: no Response value luminosity: from 5 to 350 lx. Suitable for C-load: yes Remote operation: no HVAC-control: yes Constant light control: no Substation input: no RAL-number (akin): 9010 With signal unit: yes Control current: 10 mA. Networkable: no Forced switch off: no With alarm function: no Transparent: yes Animal zone: yes Surface finishing: Matt Min. switch-on time: 10 s. Max. duty cycle: 12 min. Suitable for wall mounting: no Response value luminosity adjustable: yes With DALI interface: no Forced switch on: no Sensor type: Passive infrared Suitable for ceiling mounting: yes Antibacterial treatment: no Protection category: IP40
