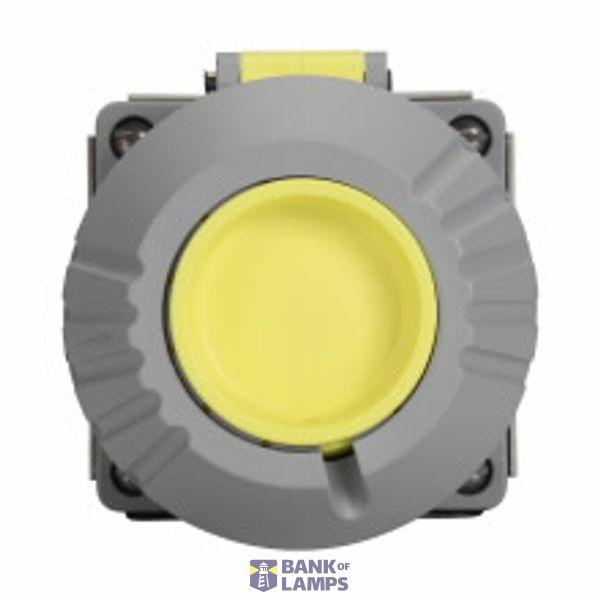

PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE image 2
PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE image 3
PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE image 4
PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE thumbnail 1
PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE thumbnail 2
PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE thumbnail 3
PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE thumbnail 4
EATON

PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name PIN AND SLEEVE DEVICE, NEMA 4X, IP66, SILICON GASKETS, 5-POLE, 30 AMPS, RECEPTACLE STRAIGHT, 480 VAC OR 3 PHASE
Brand EATON
ETIM EC001317
Number of poles 5
Material Plastic
IEC-amperage 30 A
Connection system Screwed terminal

Packing details

Packing level 1 4250217430695

Other Technical data

Cable entry Other
Rated frequency 50-60 Hz
Surface treatment contacts Other
Angle of plug Straight
Contact material Other
Degree of protection (IP) IP66
Military model No
Clock hour position 7 h

Description

GH530R7W INDUSTRIAL DESIGNRECEPTACLE30A, 277\480V AC4 POLE, 5 WIRE
