Pillar luminaires 8841LS CLO (normal) Lens Anthracite ET 36W 3500lm 70 asymmetric wide (AB2L) IP65 IK04 5 SDCM 8114540

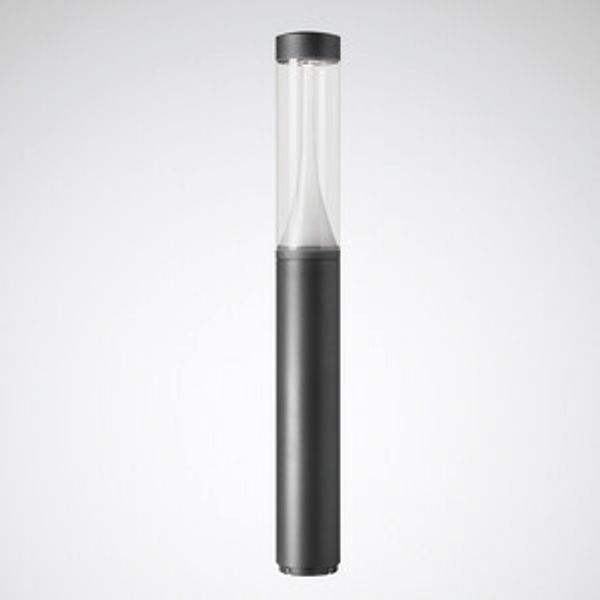

Decorative LED light column. Baseplate into firm underground. Mounting in the substrate is via suitable underground support (accessory). With asymmetric wide light distribution. Optical system with Multi-Lens Technology. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 3500 lm, connected load 34 W, maximum luminous efficiency of luminaire 103 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Mean rated service life L80(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Supporting column of extruded aluminium section, Ø 170 mm, luminaire height 3600 mm. Anthracite colour, similar to DB703 with metal effect, highly weather resistant, powder-coated. (DB 703). Sea weather-suitable coating on request. Cylindrical cover of impact-resistant PMMA, clear. With rear door and integral junction box for fuse to 16 A. Infeed for 2 cables maximum of 5 x 6 mm2. Degree of protection IP54 for junction box. Cylindrical cover of impact-resistant PMMA, clear. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK04. Windage area fw 0,610 m2. Weight: 34,3 kg. With electronic control gear unit, switchable The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
