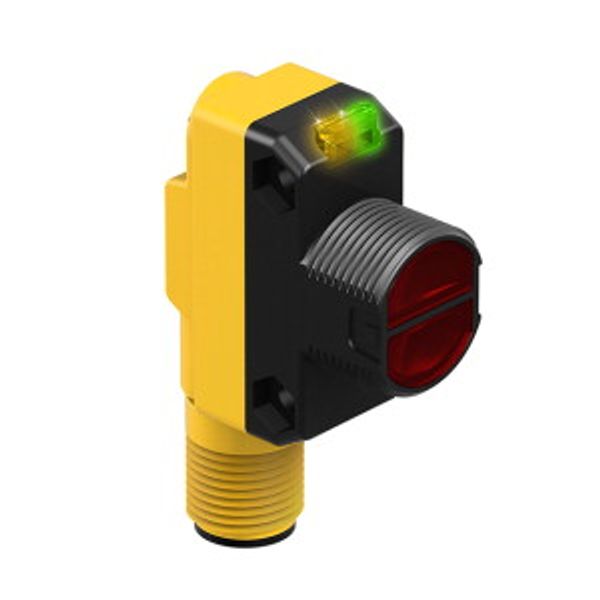

Photoelectric Sensor Retroreflective Sensor with Polarizing Filter QS18VP6LPQ8
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488664527
MPN: 3066452
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Retroreflective Sensor with Polarizing Filter QS18VP6LPQ8 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | CN |
| Harmonized System Code | 8536 5019 00 |
| Housing material | Plastic |
| Ambient temperature | -20 °C |
| Type of switching output | PNP |
| Type of switch function | Change-over contact (NO/NC) |
| Type of light | Polarized red light |
| Wavelength of the sensor | 630 nm |
| Degree of protection (IP) | IP67 |
| Rated switching distance | 3500 mm |
Packing details
| Packing level 1 | 0662488664527, 0662488664527 |
Other Technical data
| Suitable for safety functions | No |
| With time function | No |
| Switching frequency | 800 Hz |
| Type of electric connection | Connector M12 |
| Construction type housing | Cuboid |
| Min. reflector distance | 50 mm |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| Response time | 0.6 ms |
| Pre failure notice | No |
| Material of optical surface | Plastic |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |

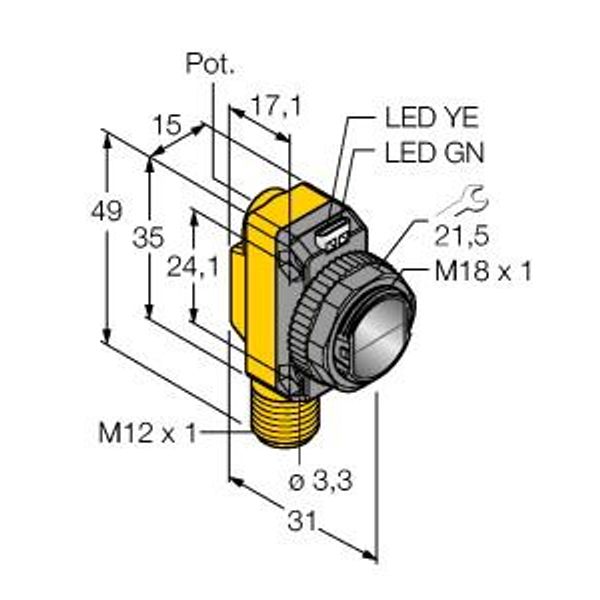

| Width sensor | 15 mm |
| Diameter sensor | 18 mm |
| Height of sensor | 35 mm |
| With communication interface analogue | No |
| With communication interface AS-Interface | No |
| With communication interface CANOpen | No |
| With communication interface DeviceNet | No |
| With communication interface Ethernet | No |
| With communication interface INTERBUS | No |
| With communication interface PROFIBUS | No |
| With communication interface RS-232 | No |
| With communication interface RS-422 | No |
| With communication interface RS-485 | No |
| With communication interface SSD | No |
| With communication interface SSI | No |
| Length of sensor | 31 mm |
| Max. switching distance | 3500 mm |
| With reflector | No |
| With other analogue output | No |
Downloads
Description
Foto-elektrische sensor, retro-reflectieve sensor met polarisatiefilter, Bedrijfsspanning 10…30 VDC, max. reikwijdte 3500 mm, connector, M12 x 1, 4-polig, beschermingsgraad IP67, LED rondom zichtbaar, gevoeligheidsinstelling met potentiometer, bedrijfsspanning: 10…30 VDC, PNP-schakeluitgang, wisselcontact
