Photoelectric Sensor Retroreflective Laser Sensor (Runtime Measurement) LT3PULVQ
Order only
Price (excl. VAT):
2 865,41 €
EAN: 0662488672744
MPN: 3067274
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Retroreflective Laser Sensor (Runtime Measurement) LT3PULVQ |
| Brand | Banner |
| Categories |
Distance Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5019 00 |
| Type of analogy output | 0 V ... 10 V |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP |
| Type of switch function | Normally open contact (NO) |
| Construction type housing | Cuboid |
| Type of light | Polarity free red light |
| Supply voltage | 12 V |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 0662488672744, 0662488672744 |
Other Technical data
| Housing material | Plastic |
| With time function | No |
| Switching frequency | 1000 Hz |
| Setting procedure | Teach-In |
| Laser protection class | Class 1 |
| Pre failure notice | No |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |

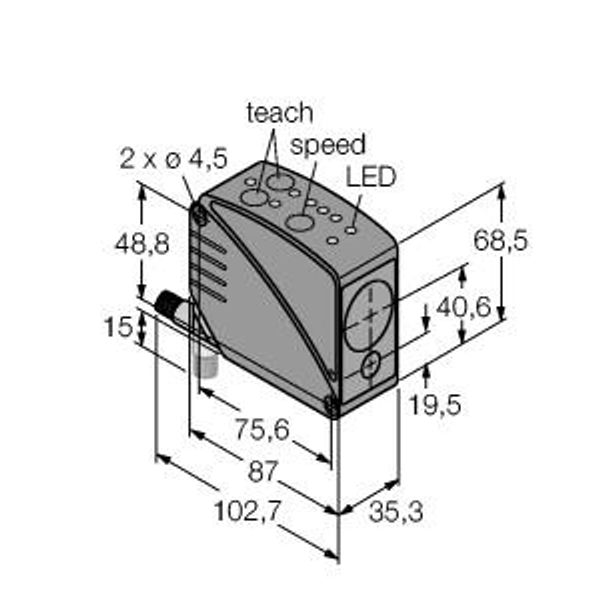

| Width sensor | 35.3 mm |
| Height of sensor | 68.5 mm |
| Length of sensor | 87 mm |
Downloads
Description
Foto-elektrische sensor, Retroreflecterende lasersensor (looptijdmeting), Met schakel- en analoge uitgang, Bedrijfsspanning 12…24 VDC, max. reikwijdte 50000 mm, connector, M12 x 1, 8-polig, weergave van de signaalsterkte, beschermingsgraad IP67, hoogreflecterende reflectorfolie BRT-TVHG-8X10P meegeleverd, reikwijdte (meetbereik) met bijbehorende reflectorfolie: 50 m, 3 schakeluitgang-aanspreektijden instelbaar, bedrijfsspanning: 12…24 VDC, schakel- en meetbereik onafhankelijk van elkaar instelbaar, flank van de analoge uitgang omkeerbaar
