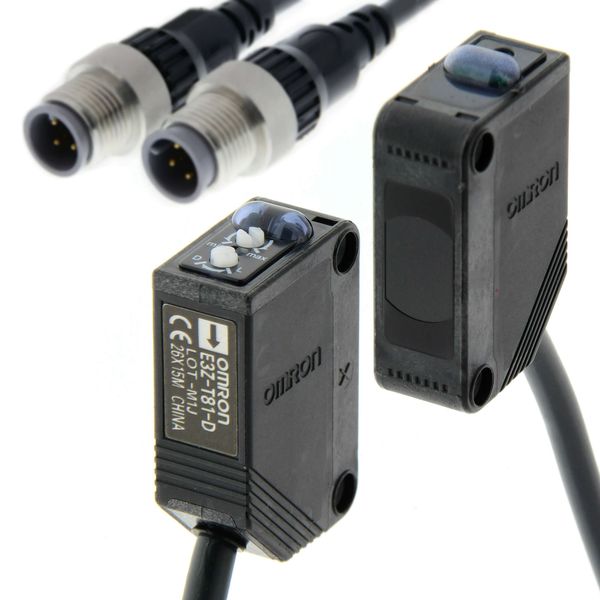

Photoelectric sensor, rectangular housing, red LED, through-beam, 10 m E3Z 7301M

Item condition	New
Manufacture name	Photoelectric sensor, rectangular housing, red LED, through-beam, 10 m E3Z 7301M
Brand	Omron
Categories	Photoelectric Sensors
Country of origin	NL
Harmonized System Code	8541 4900 00
Voltage type	DC
Housing material	Plastic
Ambient temperature	-25-55 °C
Type of switching output	PNP
Type of switch function	Programmable/configurable
Type of light	Polarized red light
Scope of delivery of the one-way system	Transmitter and receiver
Type of safety according to IEC 61496-1	1
Wavelength of the sensor	660 nm
Degree of protection (IP)	IP67
Sensing mode	Light-/dark switching
Rated switching distance	10000 mm

Max. output current	100 mA
Suitable for safety functions	No
Max. opening angle	15 °
With time function	No
Switching frequency	1000 Hz
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	0
Number of protected contact energized outputs	0
Type of interface for safety communication	Other
Type of electric connection	Cable with connector
Rated control supply voltage at DC	12-24 V
Operation agent-safety class	Safety class 3
Setting procedure	Manual adjustment
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Laser protection class	None
With monitoring function downstream switching devices	No
With restart blockage	No
Response time	1 ms
Pre failure notice	No
Material of optical surface	Plastic
Material of cable sheath	Polyvinyl chloride (PVC)
Analogue output 0 V ... 10 V	No
Analogue output 0 mA ... 20 mA	No
Analogue output -10 V ... +10 V	No
Analogue output 4 mA ... 20 mA	No
AWG-number	25
Width sensor	10.8 mm
Height of sensor	32.2 mm
With communication interface analogue	No
With communication interface AS-Interface	No
With communication interface CANOpen	No
With communication interface DeviceNet	No
With communication interface Ethernet	No
With communication interface INTERBUS	No
With communication interface PROFIBUS	No
With communication interface RS-232	No
With communication interface RS-422	No
With communication interface RS-485	No
With communication interface SSD	No
With communication interface SSI	No
Length of sensor	20 mm
Max. switching distance	10000 mm
With reflector	No
With other analogue output	No
Degree of protection (NEMA)	Other
