Omron

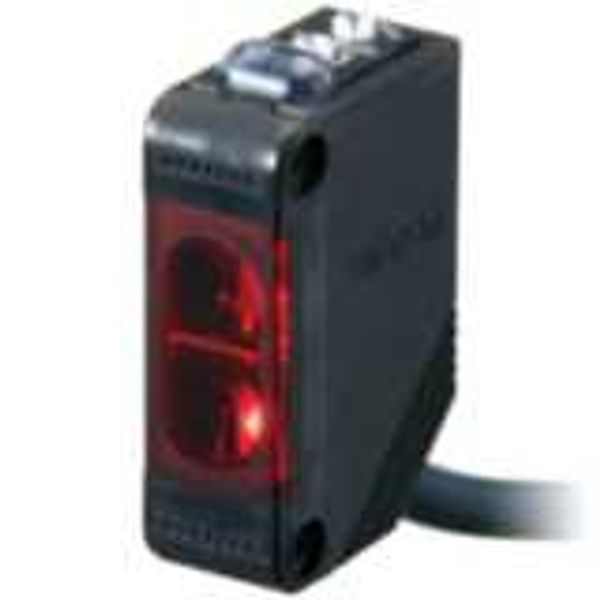

Photoelectric sensor, rectangular housing, red LED, retro-reflective, E3Z 7034G

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
74,76 €
This price is valid until 24.12.25
EAN: 4547648287159
MPN: E3Z-R81 5M
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Photoelectric sensor, rectangular housing, red LED, retro-reflective, E3Z 7034G
Brand Omron
Categories Photoelectric Sensors
Country of origin NL
Harmonized System Code 8541 4900 00
Voltage type DC
Housing material Plastic
Ambient temperature -25-55 °C
Type of switching output PNP
Type of switch function Programmable/configurable
Type of light Polarized red light
Type of safety according to IEC 61496-1 1
Wavelength of the sensor 660 nm
Degree of protection (IP) IP67
Sensing mode Light-/dark switching
Rated switching distance 4000 mm

Packing details

Packing level 1 4547648287159, 4547648287159

Other Technical data

Max. output current 100 mA
Suitable for safety functions No
With time function No
Switching frequency 1000 Hz
Number of semiconductor outputs with signalling function 1
Number of contact energized outputs with signalling function 0
Number of protected semiconductor outputs 0
Number of protected contact energized outputs 0
Type of interface for safety communication Other
Type of electric connection Cable
Rated control supply voltage at DC 12-24 V
Operation agent-safety class Safety class 3
Setting procedure Manual adjustment
Explosion safety category for gas None
Explosion safety category for dust None
Construction type housing Cuboid
Laser protection class None
Min. reflector distance 100 mm
With monitoring function downstream switching devices No
With restart blockage No
Response time 1 ms
Pre failure notice No
Material of optical surface Plastic
Analogue output 0 V ... 10 V No
Analogue output 0 mA ... 20 mA No
Analogue output -10 V ... +10 V No
Analogue output 4 mA ... 20 mA No
Width sensor 10.8 mm
Height of sensor 32.2 mm
With communication interface analogue No
With communication interface AS-Interface No
With communication interface CANOpen No
With communication interface DeviceNet No
With communication interface Ethernet No
With communication interface INTERBUS No
With communication interface PROFIBUS No
With communication interface RS-232 No
With communication interface RS-422 No
With communication interface RS-485 No
With communication interface SSD No
With communication interface SSI No
Length of sensor 20 mm
Max. switching distance 4000 mm
With reflector No
With other analogue output No
Degree of protection (NEMA) Other

Downloads

Product data sheet

Description

Photoelectric sensor, rectangular housing, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, 5 m cable
