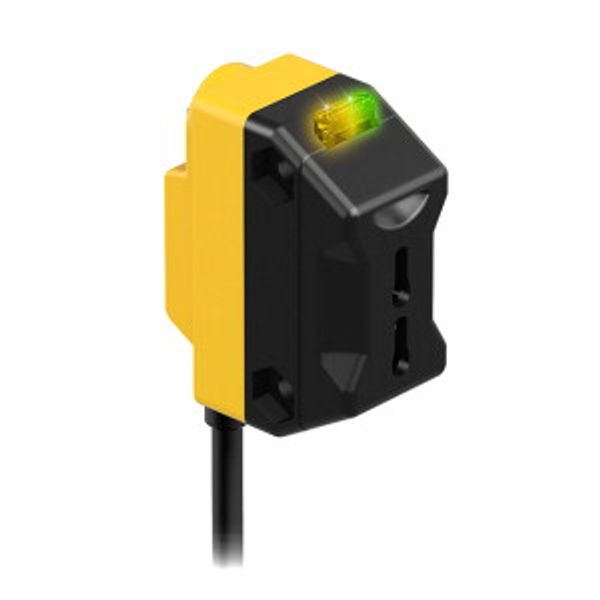

Photoelectric Sensor Photoelectric Sensor for Plastic Fibers QS18VN6FP
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488662226
MPN: 3066222
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Photoelectric Sensor for Plastic Fibers QS18VN6FP |
| Brand | Banner |
| Categories |
Distance Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5019 00 |
| Type of electric connection | Cable |
| Type of switching output | NPN |
| Type of switch function | Change-over contact (NO/NC) |
| With blanking function | No |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
Packing details
| Packing level 1 | 0662488662226, 0662488662226 |
Other Technical data
| Housing material | Plastic |
| Ambient temperature | -20 °C |
| With time function | No |
| Switching frequency | 800 Hz |
| Construction type housing | Cuboid |
| Type of light | Polarity free red light |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |

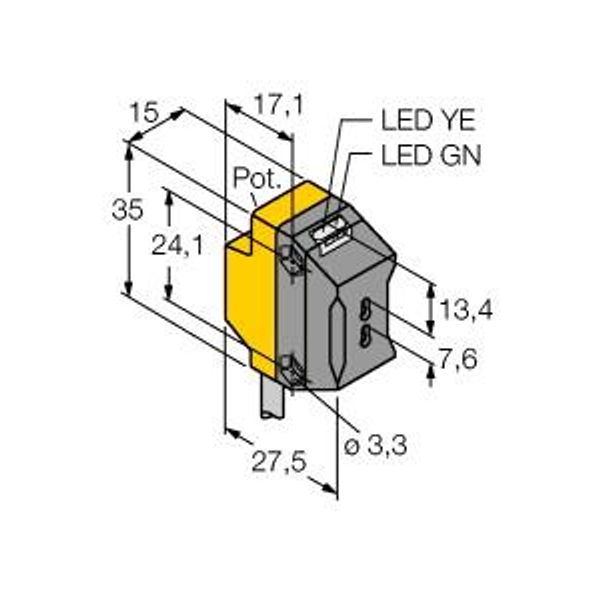

| Width amplifier | 15 mm |
| Diameter sensor | 18 mm |
| Height amplifier | 34.5 mm |
| Length amplifier | 27.5 mm |
Downloads
Description
Foto-elektrische sensor, Lichtgeleidersensor voor kunststoffen lichtgeleiders, Bedrijfsspanning 10…30 VDC, max. reikwijdte 3500 mm, Kabellengte 2 m, kabel, PVC, 2 m, beschermingsgraad IP67, LED rondom zichtbaar, gevoeligheidsinstelling met potentiometer, bedrijfsspanning: 10…30 VDC, NPN-schakeluitgang, wisselcontact
