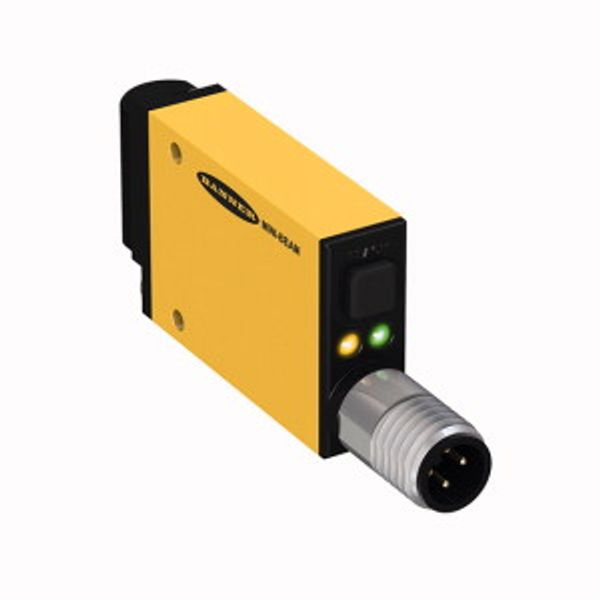

Photoelectric Sensor Photoelectric Sensor for Glass Fibers SM312FVBQD
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488472788
MPN: 3047278
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Photoelectric Sensor for Glass Fibers SM312FVBQD |
| Brand | Banner |
| Categories |
Distance Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5019 00 |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP/NPN |
| Type of switch function | Normally open contact (NO) |
| With blanking function | No |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
Packing details
| Packing level 1 | 0662488472788, 0662488472788 |
Other Technical data
| Housing material | Plastic |
| Ambient temperature | -20 °C |
| With time function | No |
| Switching frequency | 500 Hz |
| Construction type housing | Cuboid |
| No-load current | 25 mA |
| Type of light | Blue light |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |

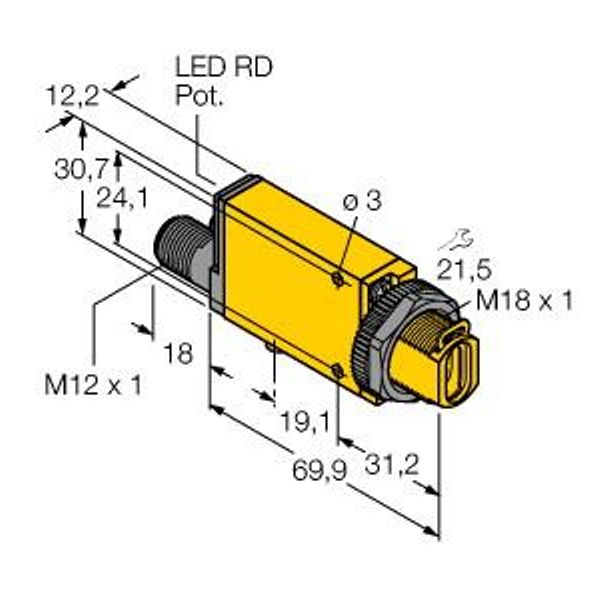

| Width amplifier | 12.3 mm |
| Height amplifier | 30.7 mm |
| Length amplifier | 71.3 mm |
Downloads
Description
Foto-elektrische sensor, Lichtgeleidersensor voor glaslichtgeleider, Bedrijfsspanning 10…30 VDC, connector, M12 x 1, 4-polig, beschermingsgraad IP67, gevoeligheid instelbaar met potentiometer, instelhulp, bedrijfsspanning: 10…30 VDC, bipolaire schakeluitgang, licht-/donkerschakelend
