Photoelectric Sensor Photoelectric Sensor for Glass Fibers Q45BB6F
Order Only
Minimal order quantity: 1
Price (excl. VAT):
214,00 €
EAN: 0662488365608
MPN: 3036560
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Photoelectric Sensor for Glass Fibers Q45BB6F |
| Brand | Banner |
| Categories |
Distance Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5019 00 |
| Type of electric connection | Cable |
| Type of switching output | PNP/NPN |
| Type of switch function | Normally open contact (NO) |
| With blanking function | No |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
Packing details
| Packing level 1 | 0662488365608, 0662488365608 |
Other Technical data
| Housing material | Plastic |
| Ambient temperature | -40 °C |
| With time function | No |
| Switching frequency | 250 Hz |
| Construction type housing | Cuboid |
| No-load current | 50 mA |
| Type of light | Infrared light |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |

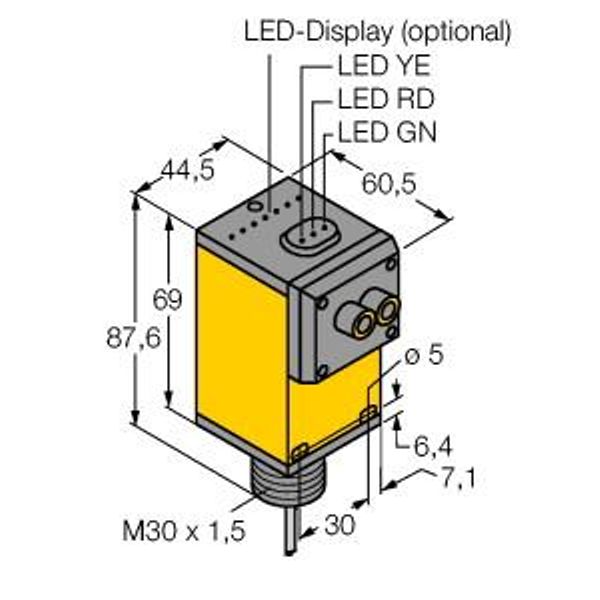

| Width amplifier | 44.5 mm |
| Height amplifier | 87.6 mm |
| Length amplifier | 60.5 mm |
Downloads
Description
Opto-elektronische sensor, Lichtgeleidersensor voor glaslichtgeleider, Bedrijfsspanning 10…30 VDC, Kabellengte 2 m, kabel, PVC, 2 m, beschermingsgraad IP67, aansluitkabel, 2 m, bedrijfsspanning: 10…30 VDC, bipolaire schakeluitgang, licht- of donkerschakelend regelbaar met keuzeschakelaar
