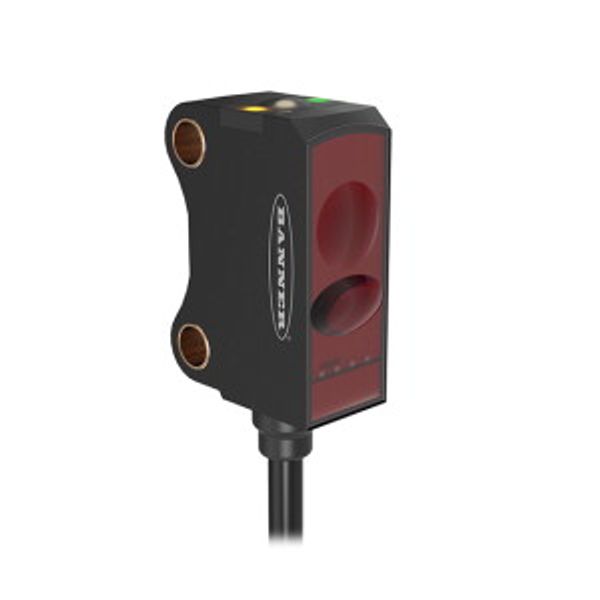

Photoelectric Sensor Opposed Mode Sensor, Laser Emitter VS8LEJ
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
199,97 €
EAN: 0662488024499
MPN: 3803482
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Opposed Mode Sensor, Laser Emitter VS8LEJ |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Housing material | Plastic |
| Ambient temperature | -20 °C |
| Type of light | Polarity free red light |
| Wavelength of the sensor | 655 nm |
| Degree of protection (IP) | IP67 |
| Rated switching distance | 3000 mm |
Packing details
| Packing level 1 | 0662488024499, 0662488024499 |
Other Technical data
| Suitable for safety functions | No |
| Type of electric connection | Cable |
| Construction type housing | Cuboid |
| Laser protection class | Class 1 |
| Response time | 0.5 ms |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |

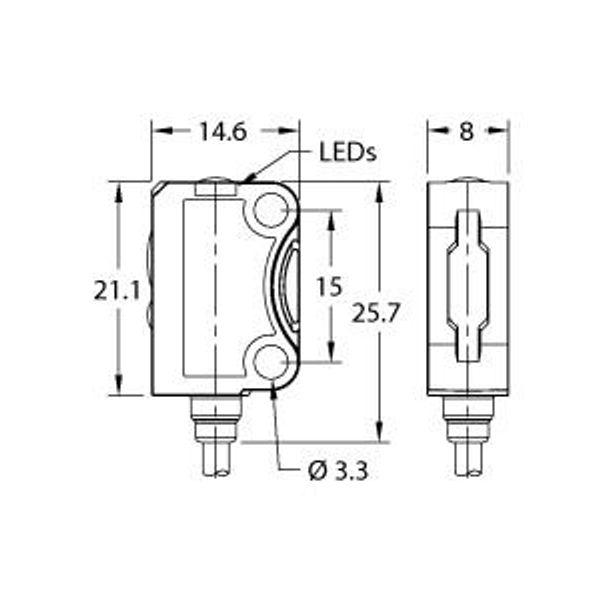

| Width sensor | 8 mm |
| Height of sensor | 25.7 mm |
| Length of sensor | 14.6 mm |
| Max. switching distance | 3000 mm |
Downloads
Description
Foto-elektrische sensor, Zender-ontvanger (laserzender), Bedrijfsspanning 10…30 VDC, max. reikwijdte 3000 mm, Kabellengte 2 m, Aansluiting via 2m-kabel, PUR, ECOLAB gecertificeerd, Laser, klasse 1, rood, Bedrijfsspanning: 10…30 V DC, Laser-LED via ingang uitschakelbaar
